OVERVIEW |
Stage-Ready Sound with a Grand Piano Feel
Fueled by the German 9′ grand piano samples found in our flagship K2700 workstation and SP7 Grand, the new MPS-M1’s next-generation A.T.S.T. (Authentic Timbre Synthesis Technology) engine provides significant advances in realism through support of higher resolution audio, smooth velocity transitions and a 2x oversampling filter.

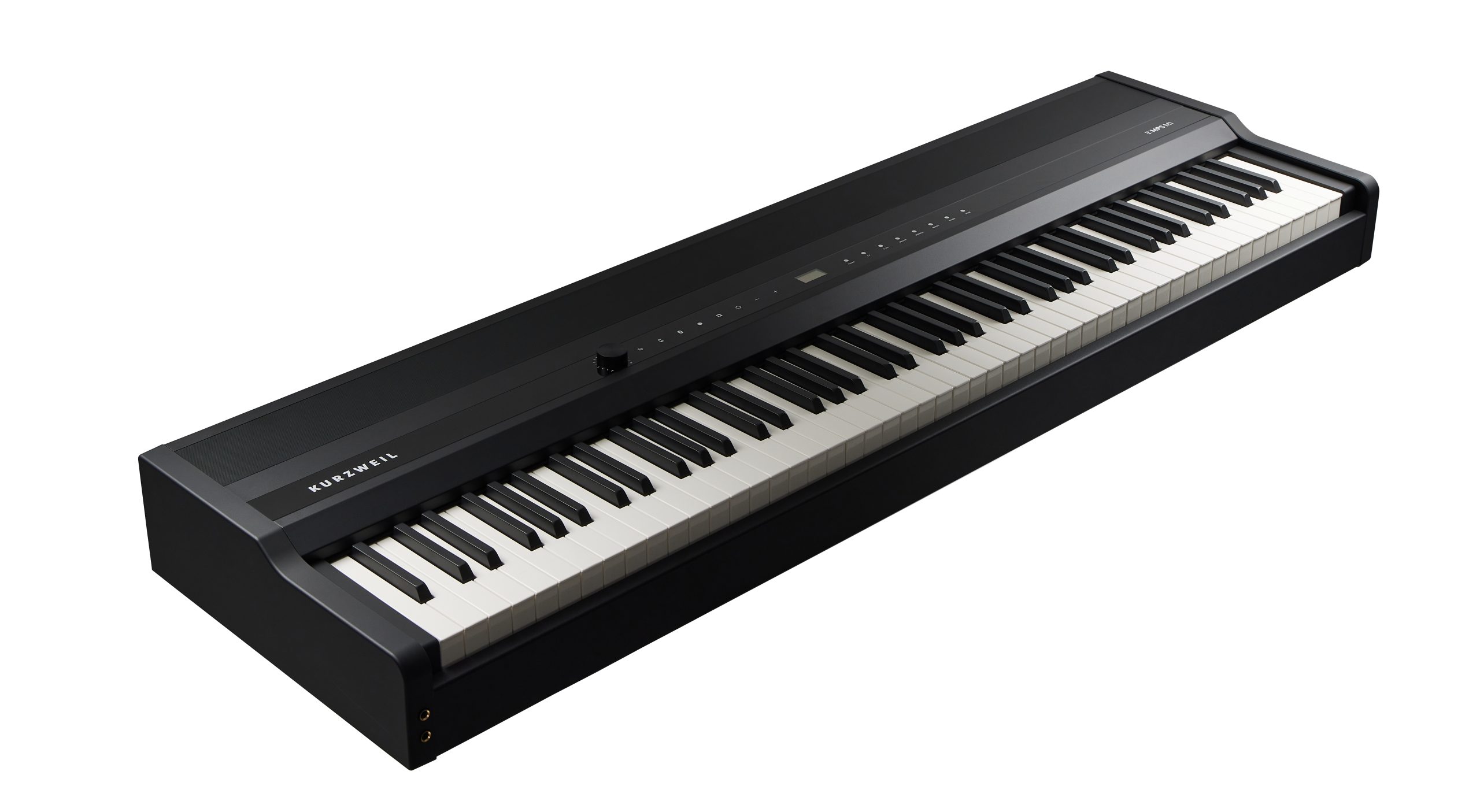

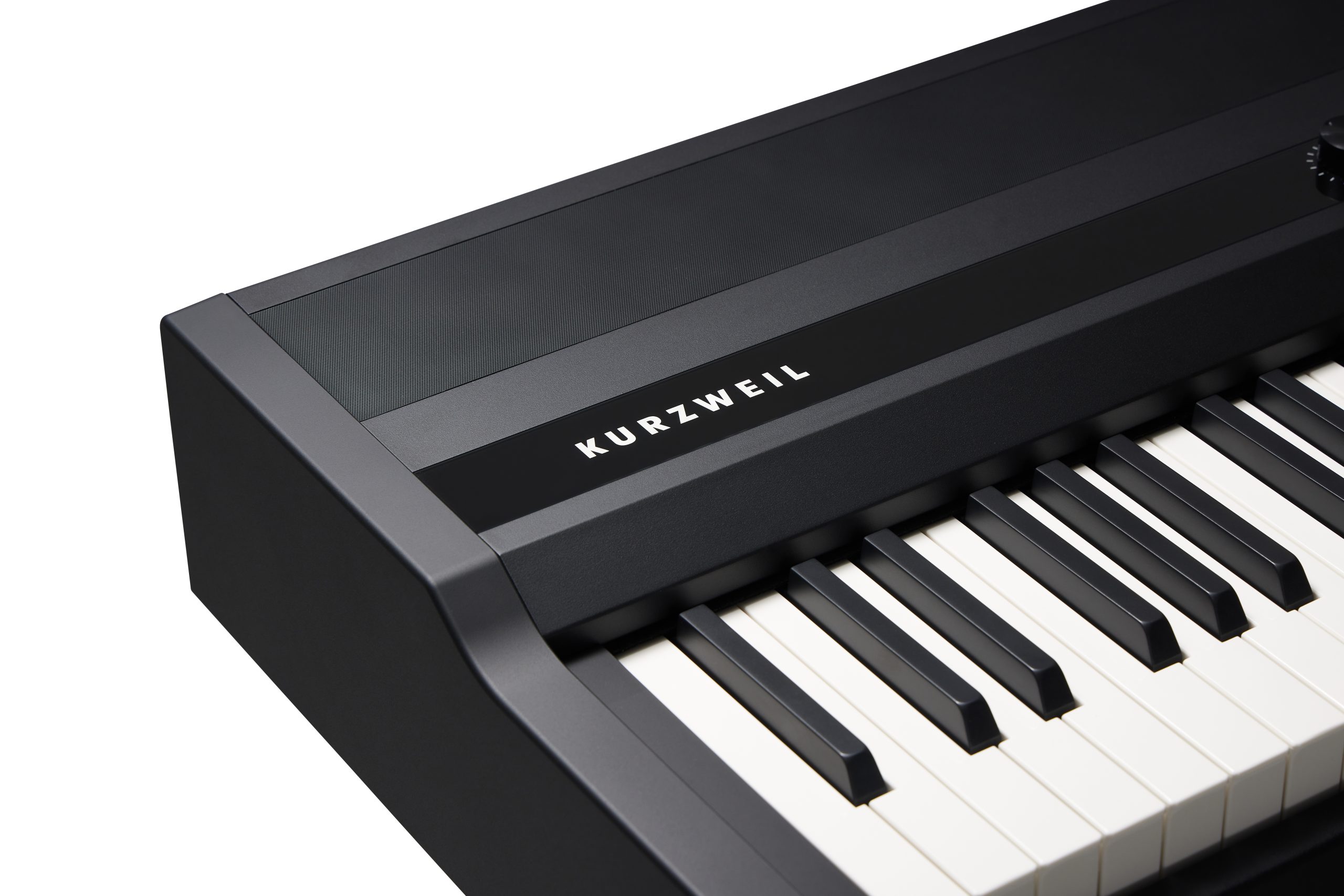

Hammer Action Keyboard
88 note, fully weighted Italian hammer action keyboard with adjustable touch sensitivity (Fatar TP110).
256 Voices of Polyphony
The MPS M1 provides an impressive 256 notes of polyphony for seamless performances.
Authentic Hand-Picked Sound Library
From our stellar German 9′ grand pianos and EPs to strings and more, the MPS-M1 provides a unique mix of both vintage and modern sounds. Piano string and damper resonance is paired with key-off samples, providing true, natural piano sounds. When paired with a selection of chorus or reverb effects, you’ll have endless opportunities to create sounds that are sure to inspire.
Splits & Layers
Create flexible splits and layers with 4 independently programmable zones.
Metronome & Rhythm Patterns
Choose from 8 metronome time-signatures and 10 built-in drum patterns to practice and play along with.

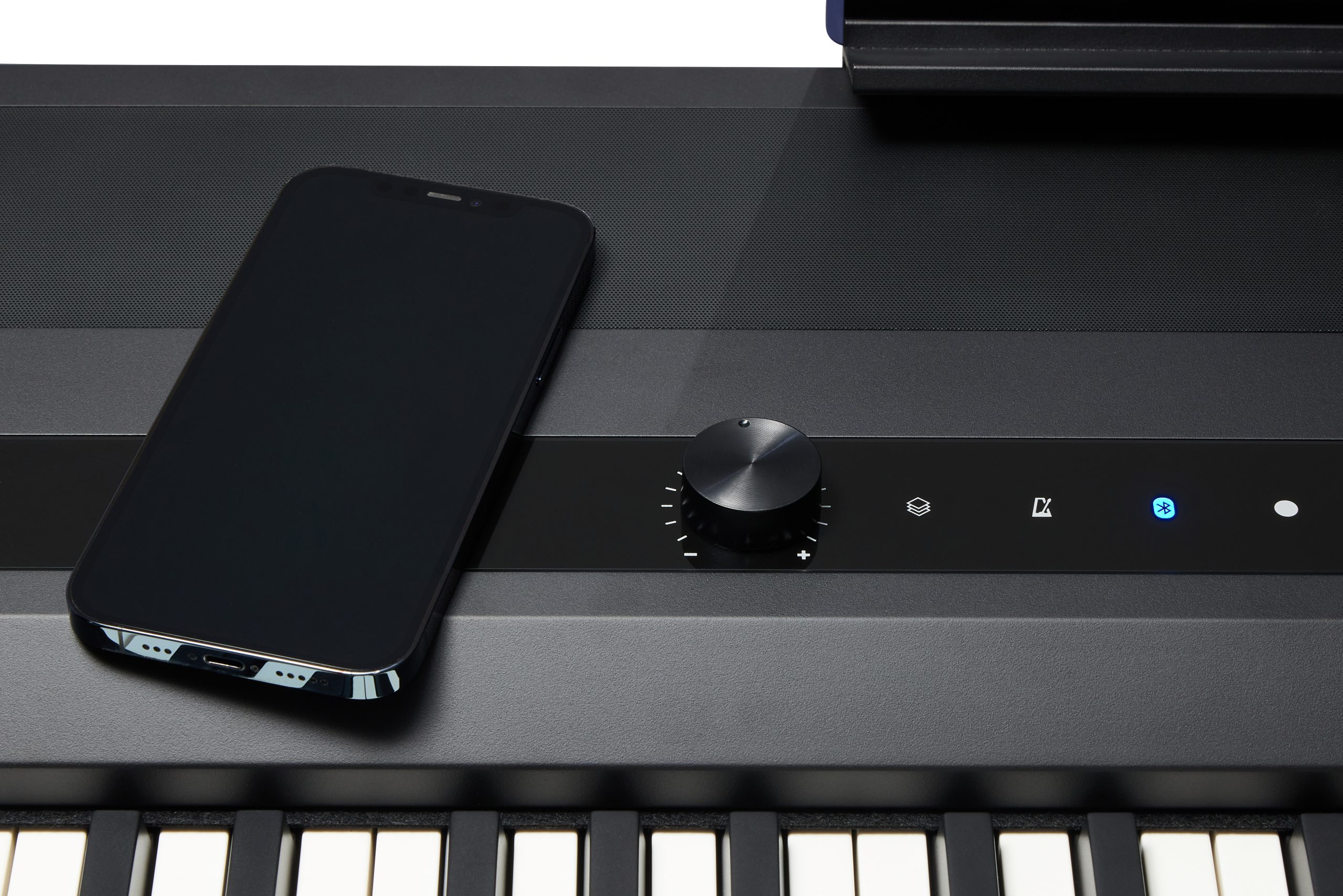

Bluetooth Audio + MIDI
Connect a smartphone or tablet wirelessly and play music through the built-in speakers of the MPS M1. The MPS1 M1 can also provide remote control of the Bluetooth transmitting device.
MIDI Song Recorder
Record your own keyboard performances with the intuitive single track song recorder.
48W 4-Speaker Sound System
The MPS M1 offers an integrated 4-speaker, stereo sound system powered by dual 24W digital amplifiers and a pair of 3 x 5″ and 2″ drivers.

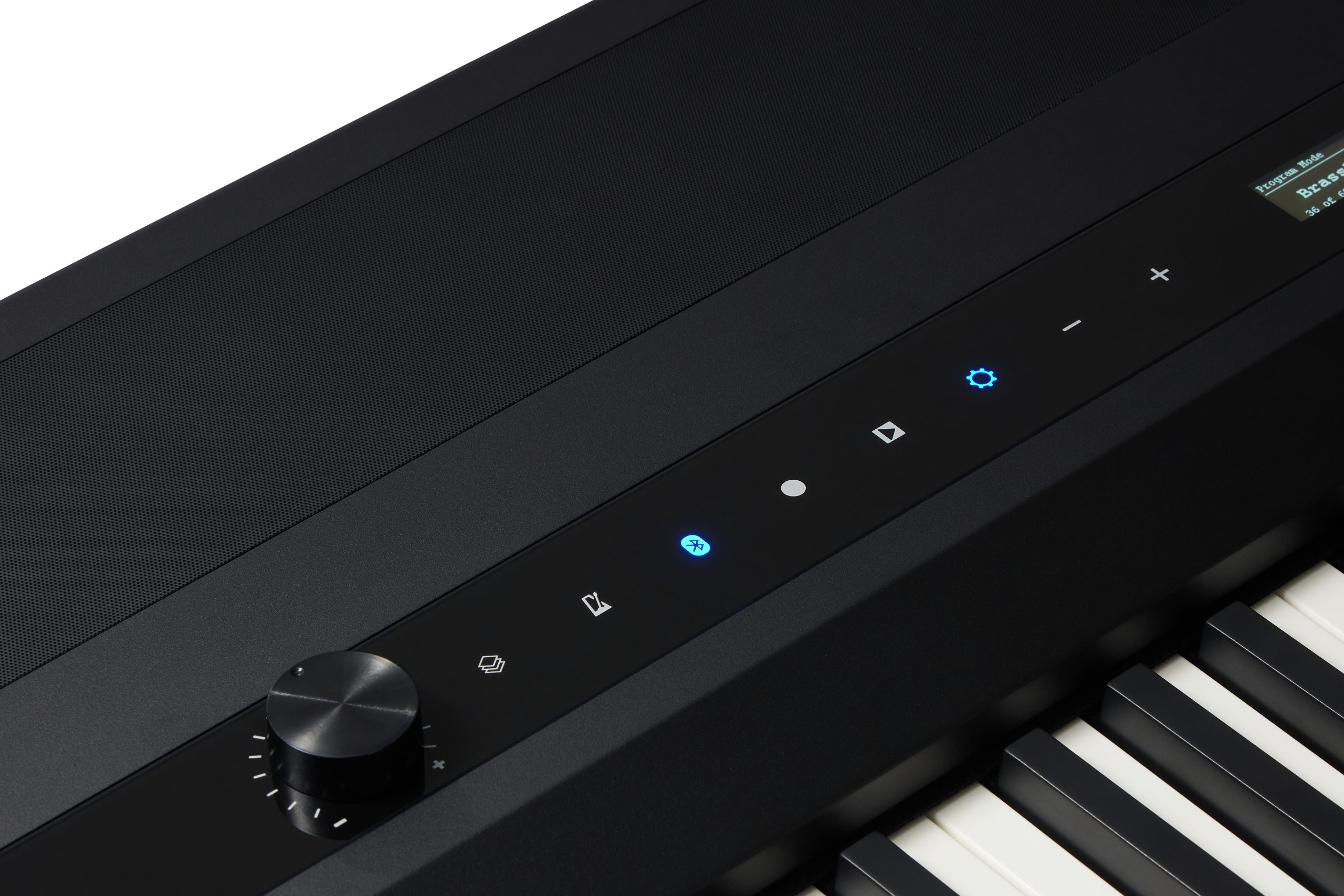

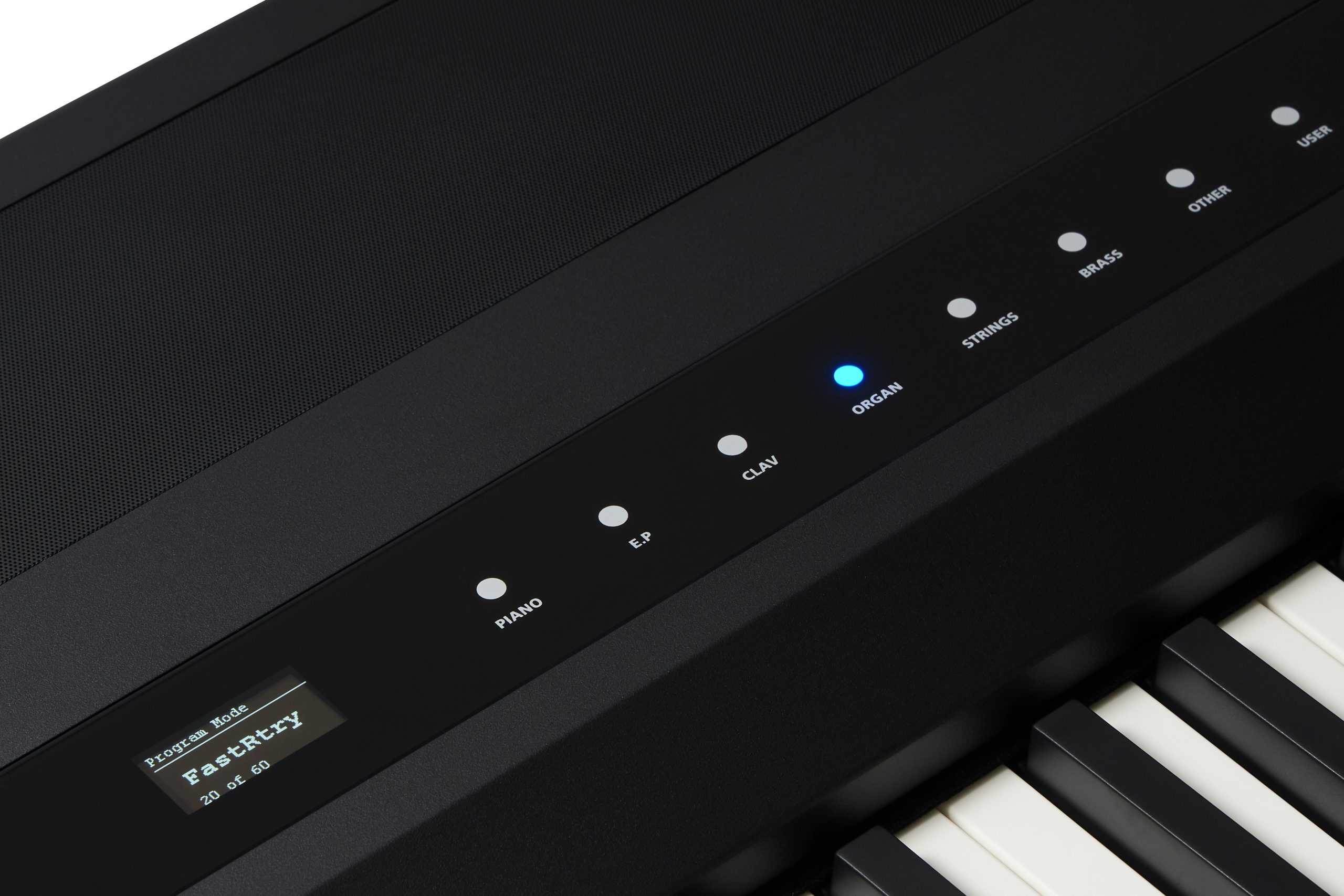

Streamlined Controls
A streamlined control panel with OLED display permits easy access to all system functions.
3-Pedal Stand (ST-5)
Step up to half-damper, sostenuto and soft pedal functionality with the optional ST-5 keyboard stand!
(sold separately)
SPECS |
| Keyboard: | 88-Note, fully weighted, hammer-action with adjustable touch sensitivity (Fatar TP110) |
| Keyboard Sensitivity: | 10 settings |
| Display: | 128 x 64 1.2″ OLED |
| Polyphony: | 256 voice |
| Architecture: | A.T.S.T. – Authentic Timbre Synthesis Technology |
| Factory Programs: | 50 (+ 128 GM) |
| User Programs: | 10 |
| Splits & Layers: | 4 zones |
| General MIDI: | GM1 |
| Piano String Resonance: | Yes |
| Piano Damper Resonance: | Yes |
| Transpose: | Full transposition to any key, +/- one octave |
| Tune: | +/- 100 cents |
| Effects: | Reverb and Chorus |
| Rhythm Patterns: | 10 |
| Metronome Time Signatures: | 8 |
| Recorder/Sequencer: | 1-track, 1 song |
| Sound System: | 48 Watt (2 x 24W), 4-speaker, stereo sound system |

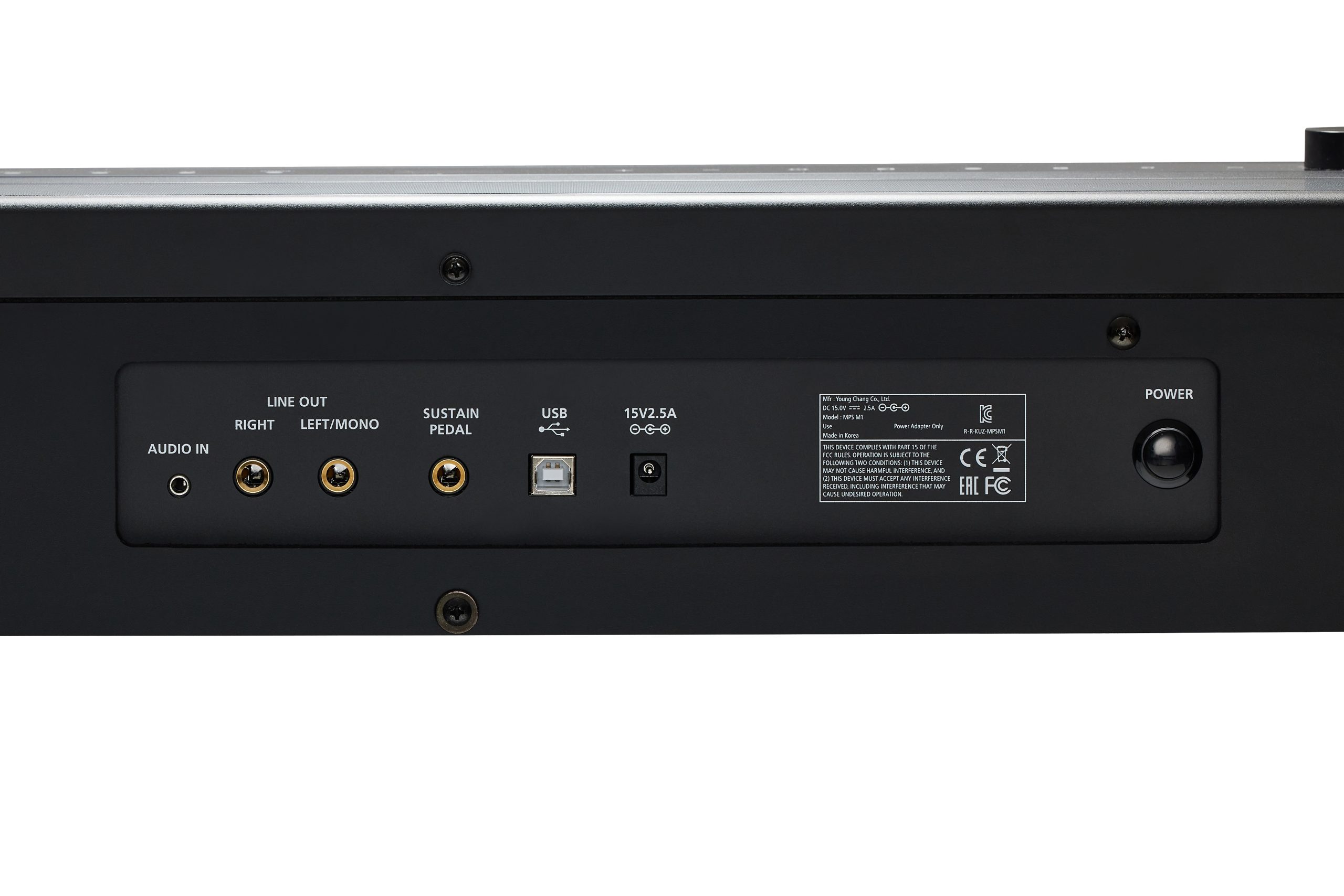

| Analog Input: | Stereo 1/8″ |
| Analog Outputs: | (2) 1/4″ TS unbalanced |

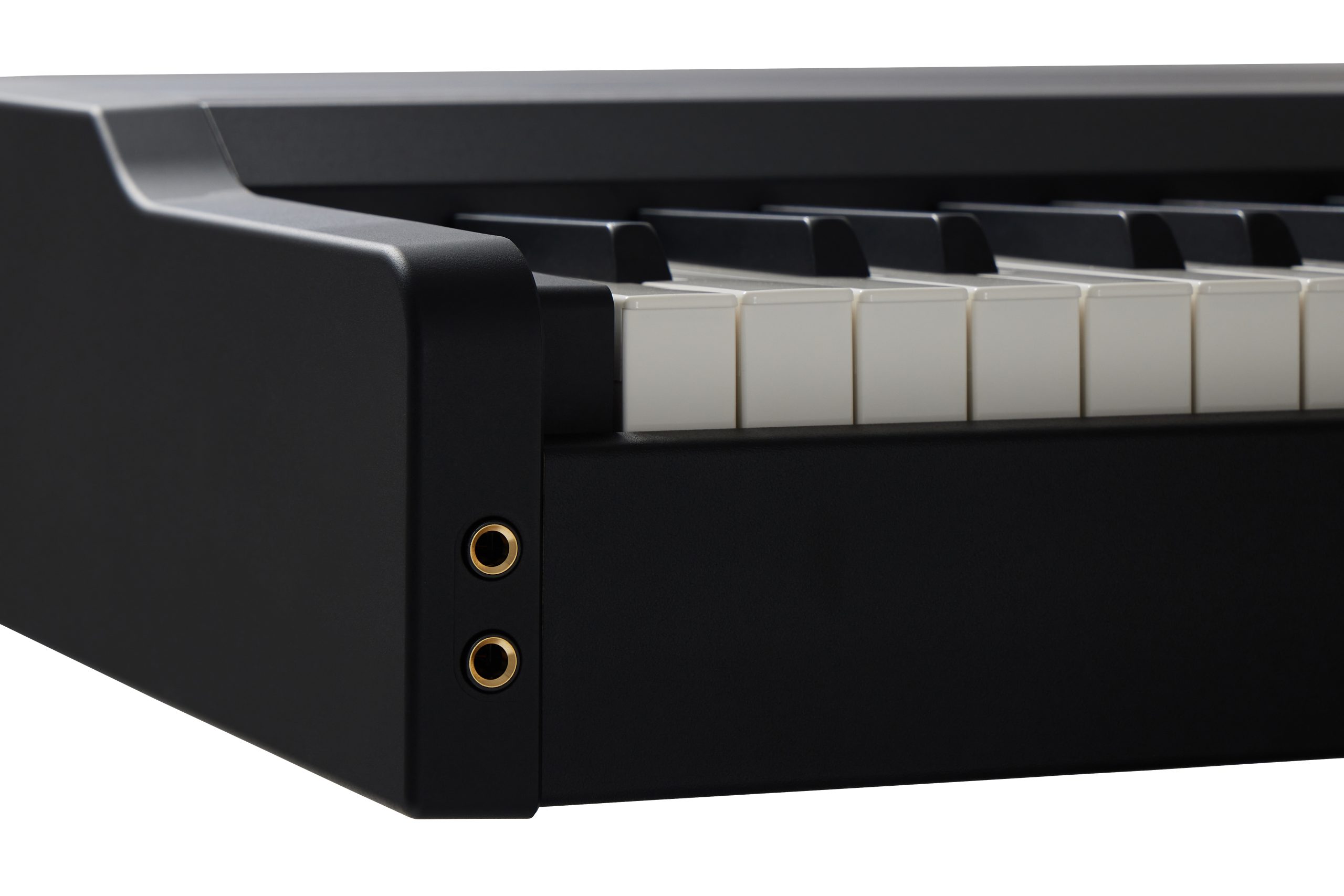

| Headphone: | (2) Front-panel 1/4″ headphone outputs |
| MIDI: | via USB and Bluetooth |
| USB: | Audio/MIDI |
| Bluetooth: | BT 5.0 Audio/MIDI |
| Pedals: | Sustain pedal input supports standard switch* or optional half-damper. 5 pin, 3-pedal expansion port supports the optional 3-pedal stand*. (*one standard switch pedal included, half-damper and 3-pedal stand sold separately) |

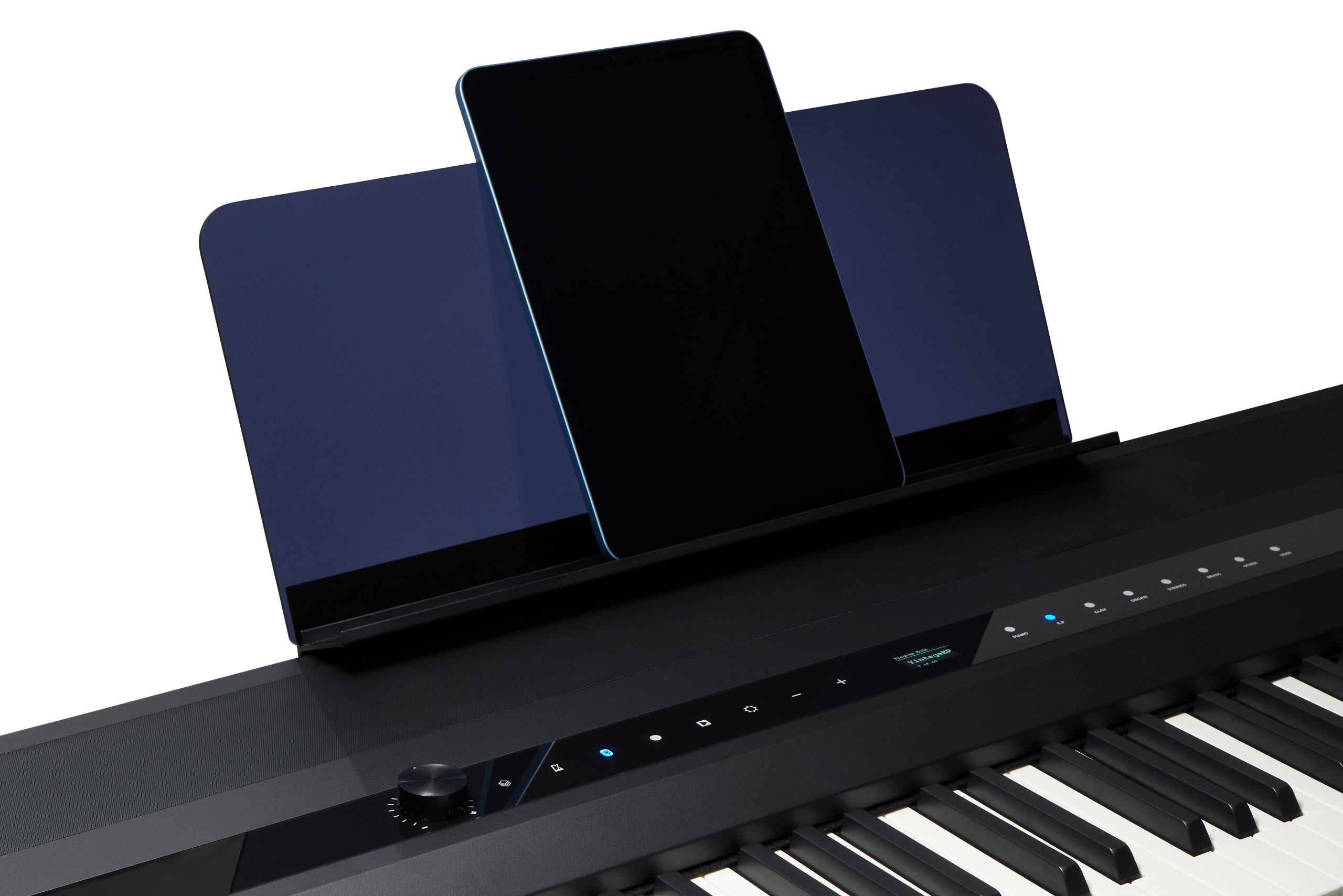

| Included Accessories: | Power adaptor, sustain pedal (switch type), music rest, USB cable |
| Optional Accessories: | Half-damper pedal, ST-5 Instrument Stand + 3-Pedal Unit |
| Height: | 5.1″ (13 cm) |
| Depth: | 15″ (38 cm) |
| Length: | 52″ (132 cm) |
| Weight: | 39 lb (17.7 kg) |
| Power: | External 15VDC 2.5A Power Supply |
All specifications subject to change without notice.
