OVERVIEW

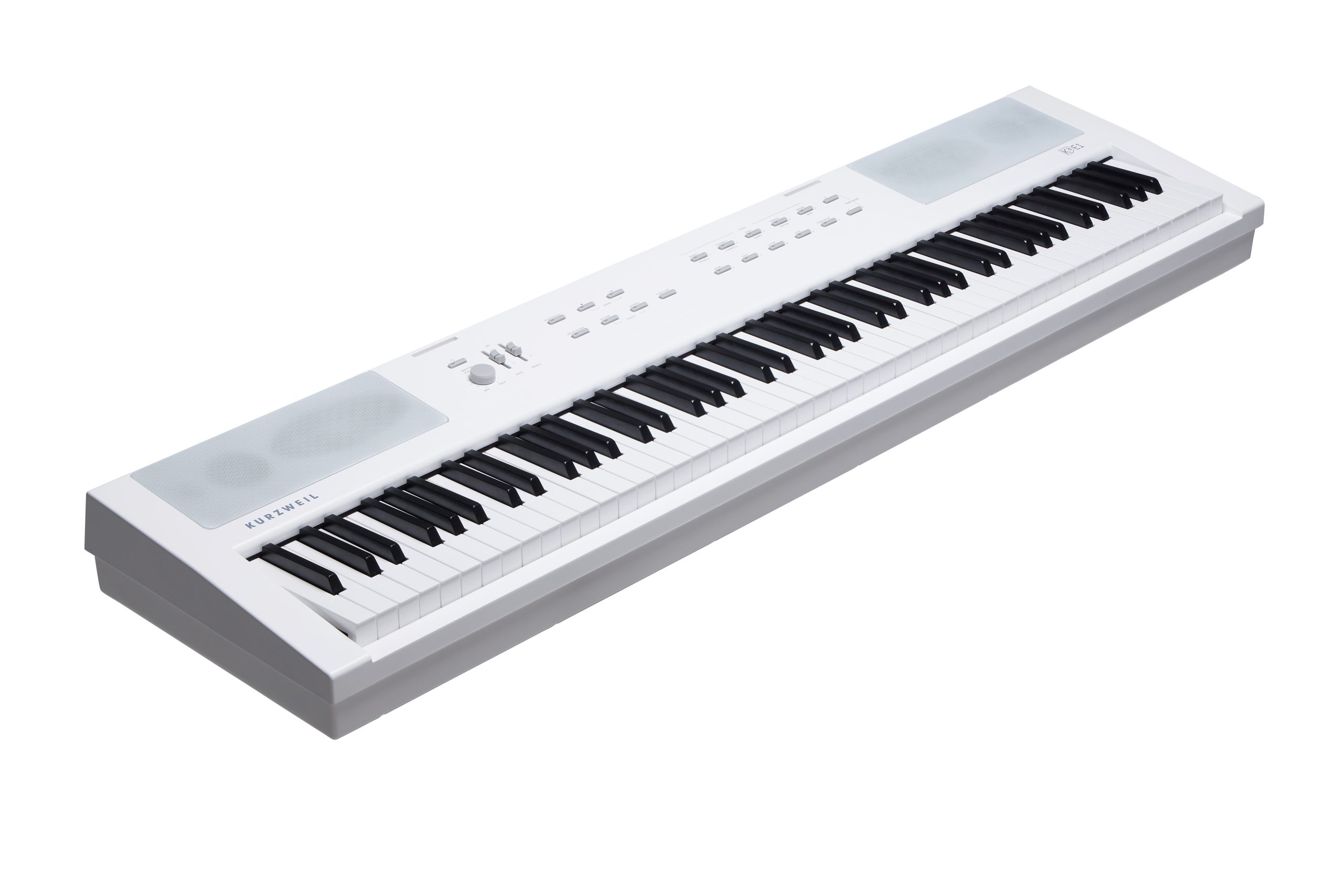

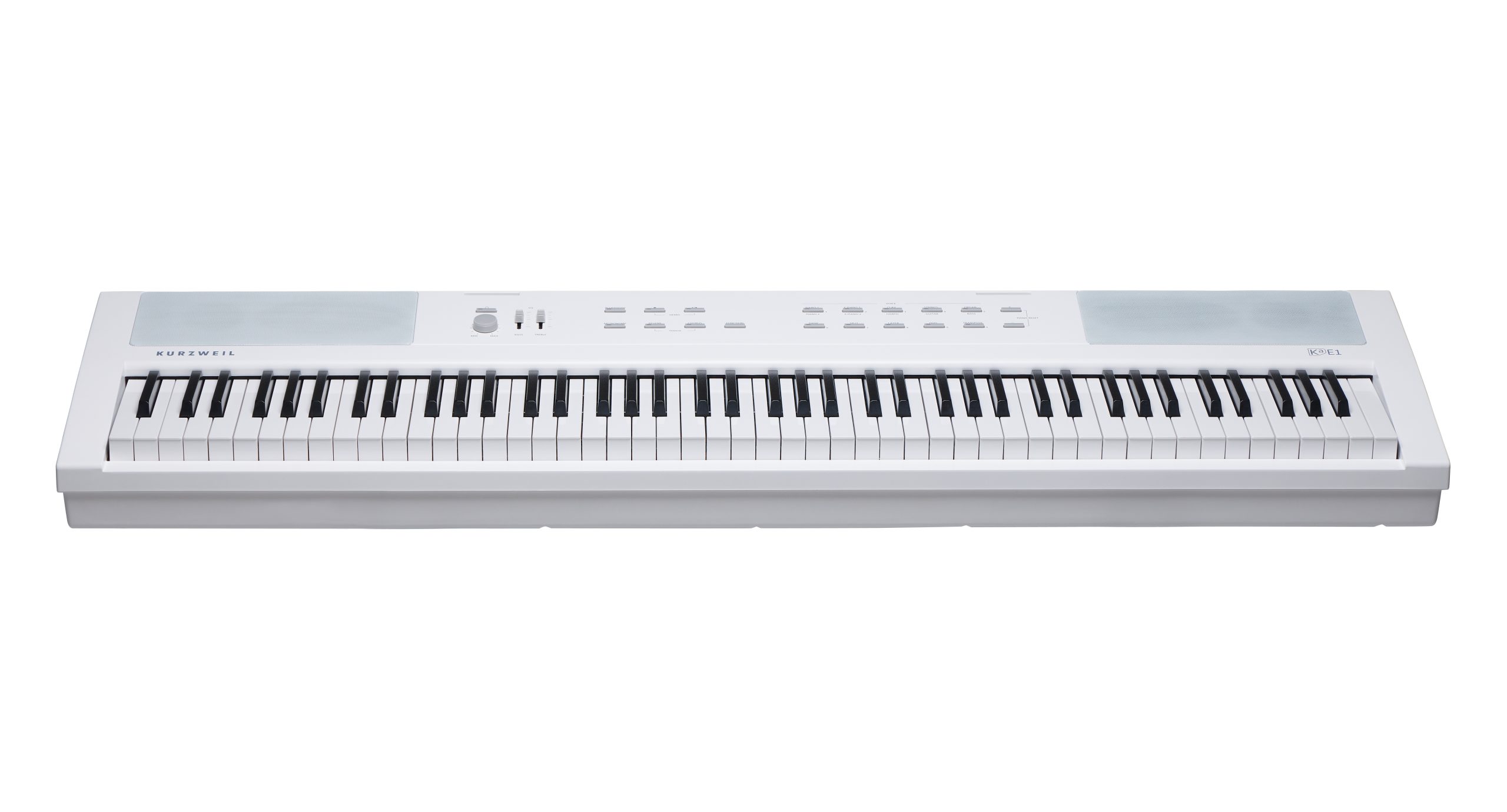

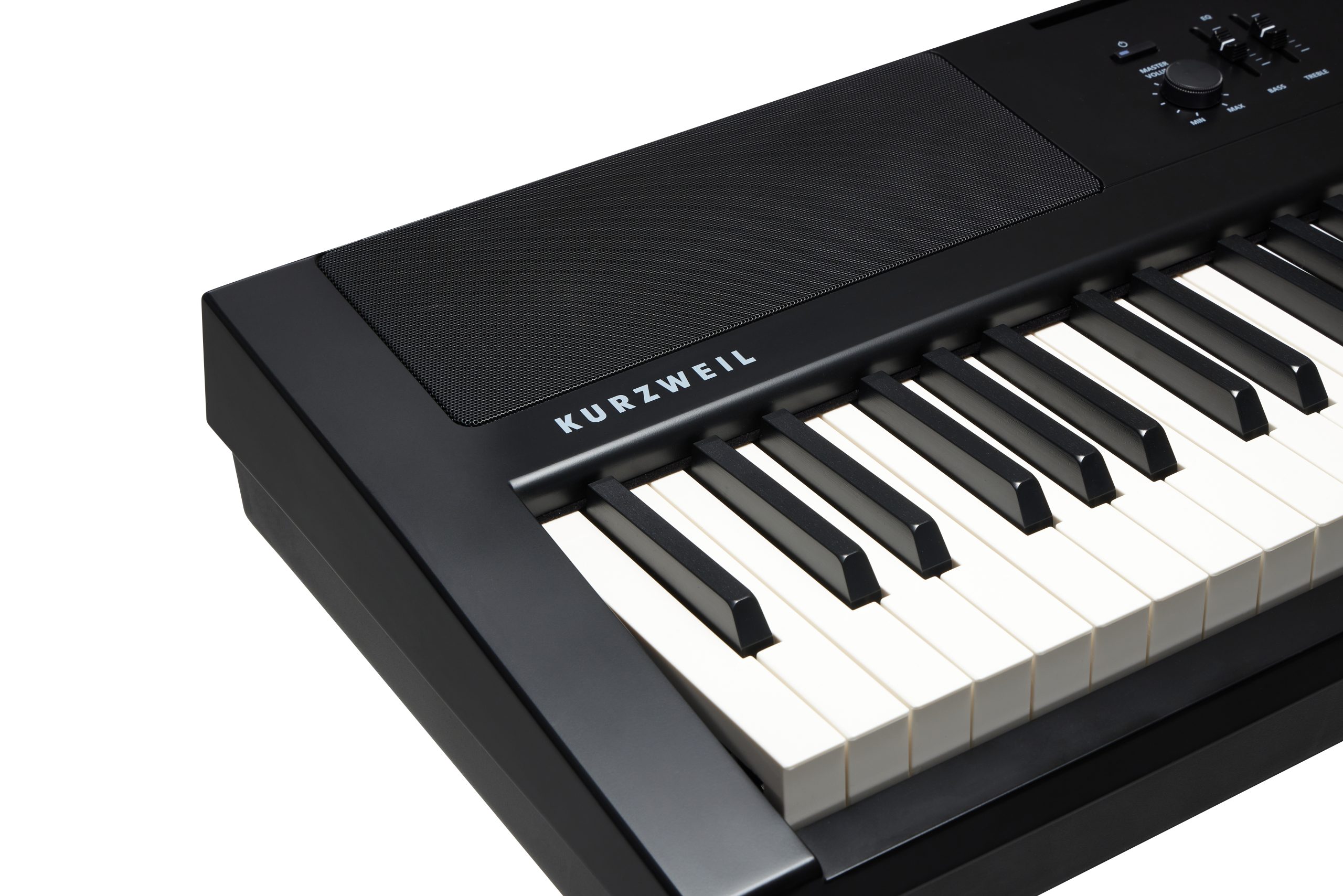

88 note, fully weighted hammer action keyboard with adjustable touch sensitivity.

The KaE1 provides 128 notes of polyphony for effortless performances.

Enjoy a variety of instruments featuring piano, electric piano, organ, clavs, strings, and more.

Create musical split, layer or duo performance combinations with adjustable split point.

Choose from 14 metronome time-signatures to practice and play along with.

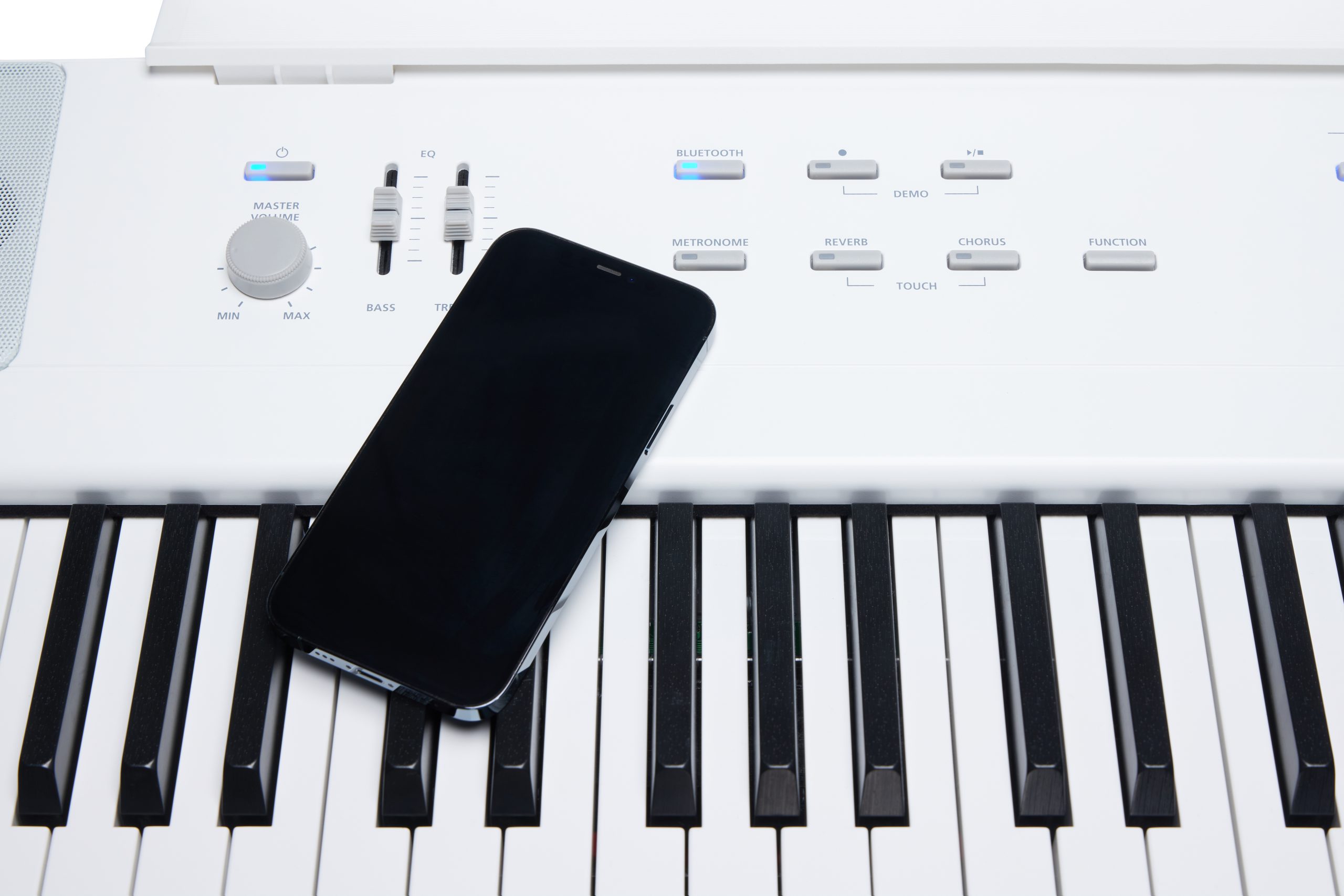

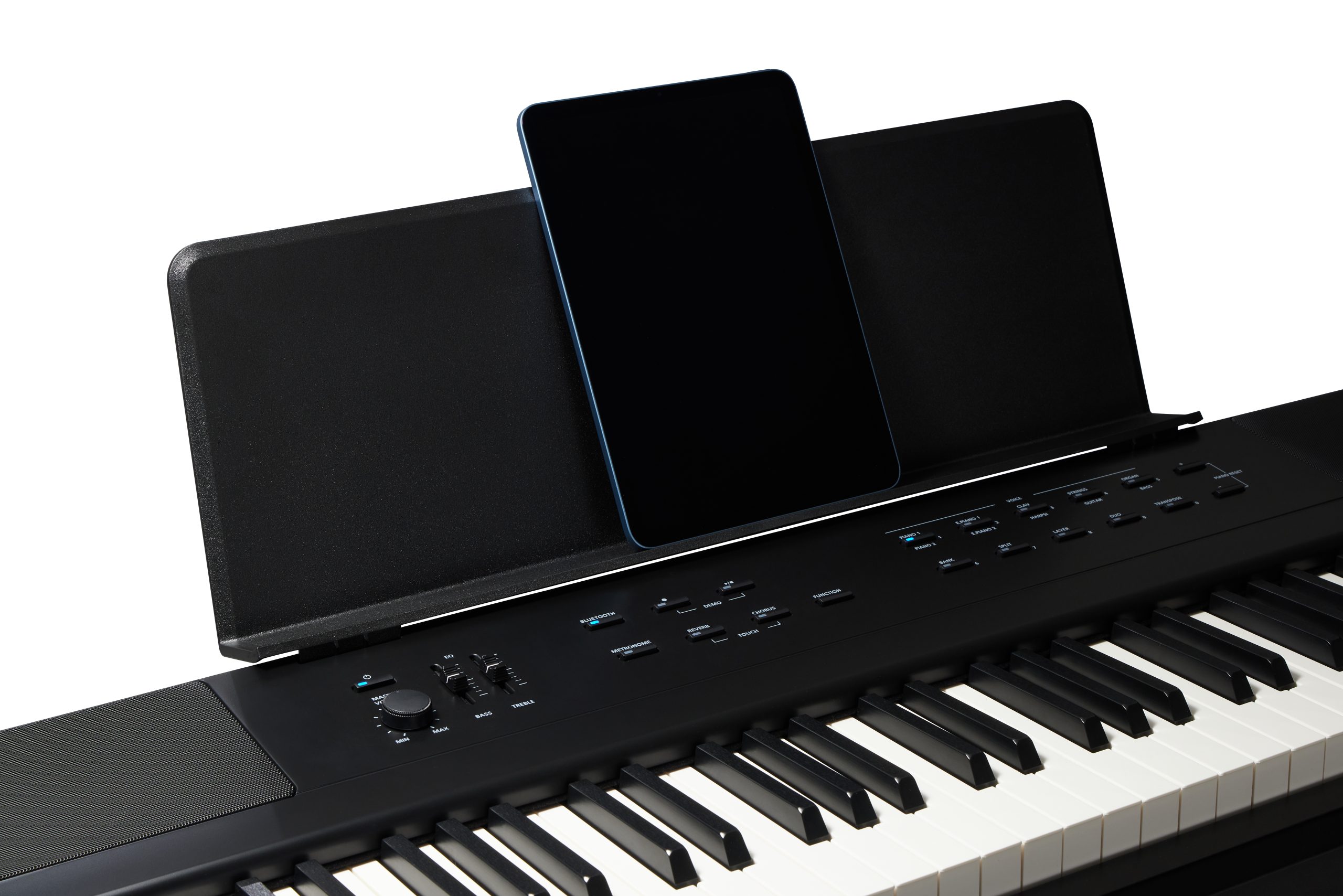

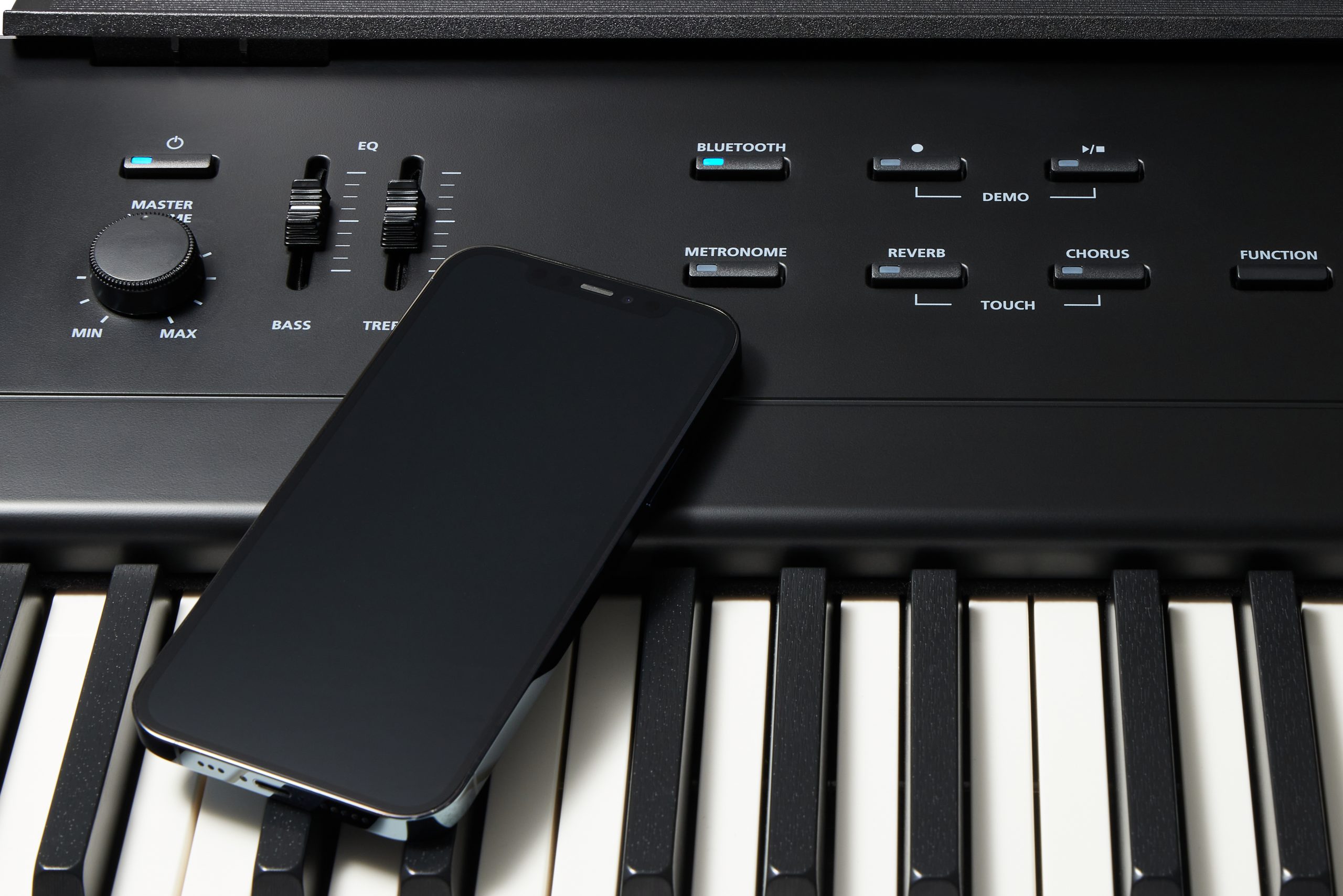

Connect a smartphone or tablet wirelessly and play music through the built-in speakers.

Record your own keyboard performances with the intuitive single track song recorder.

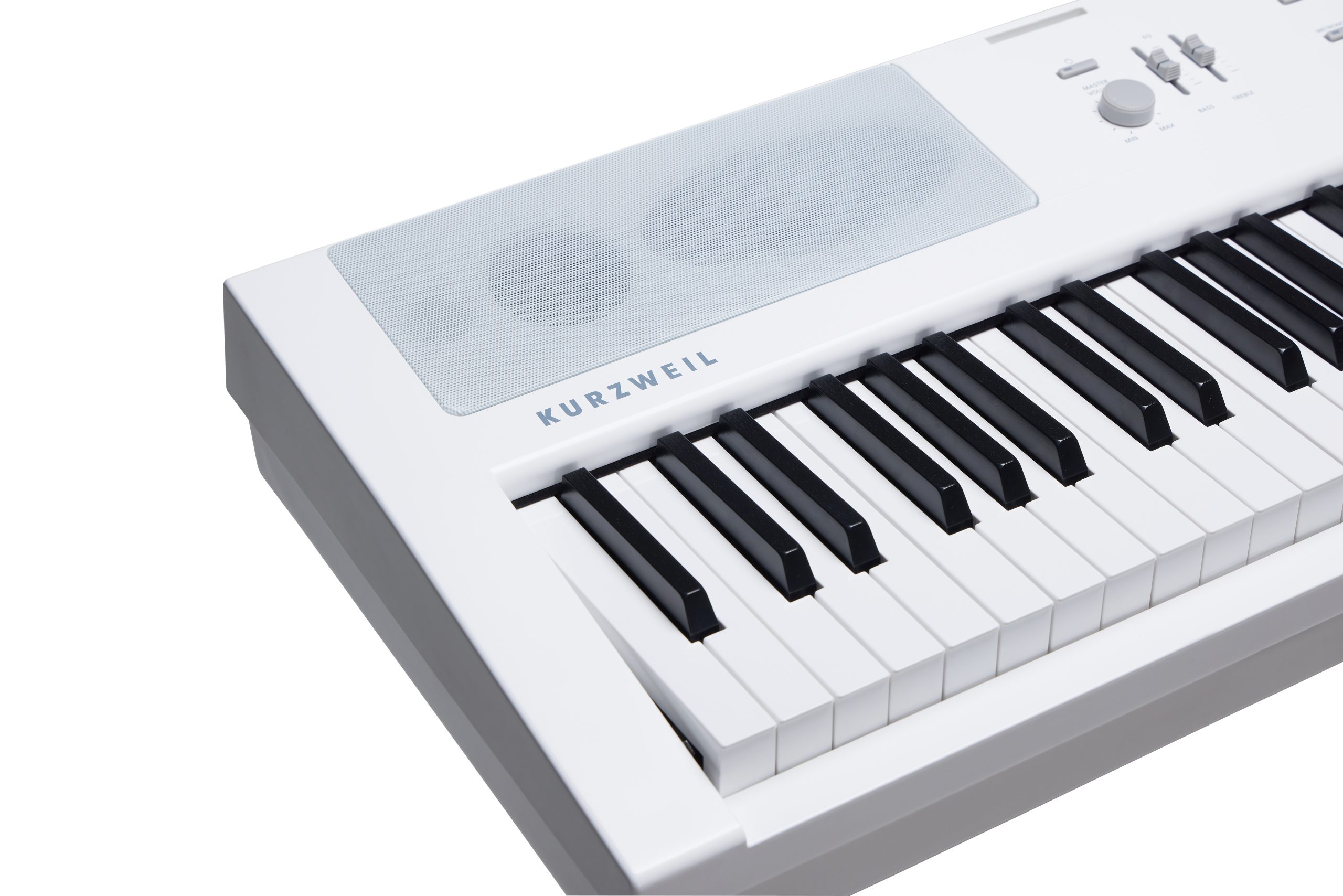

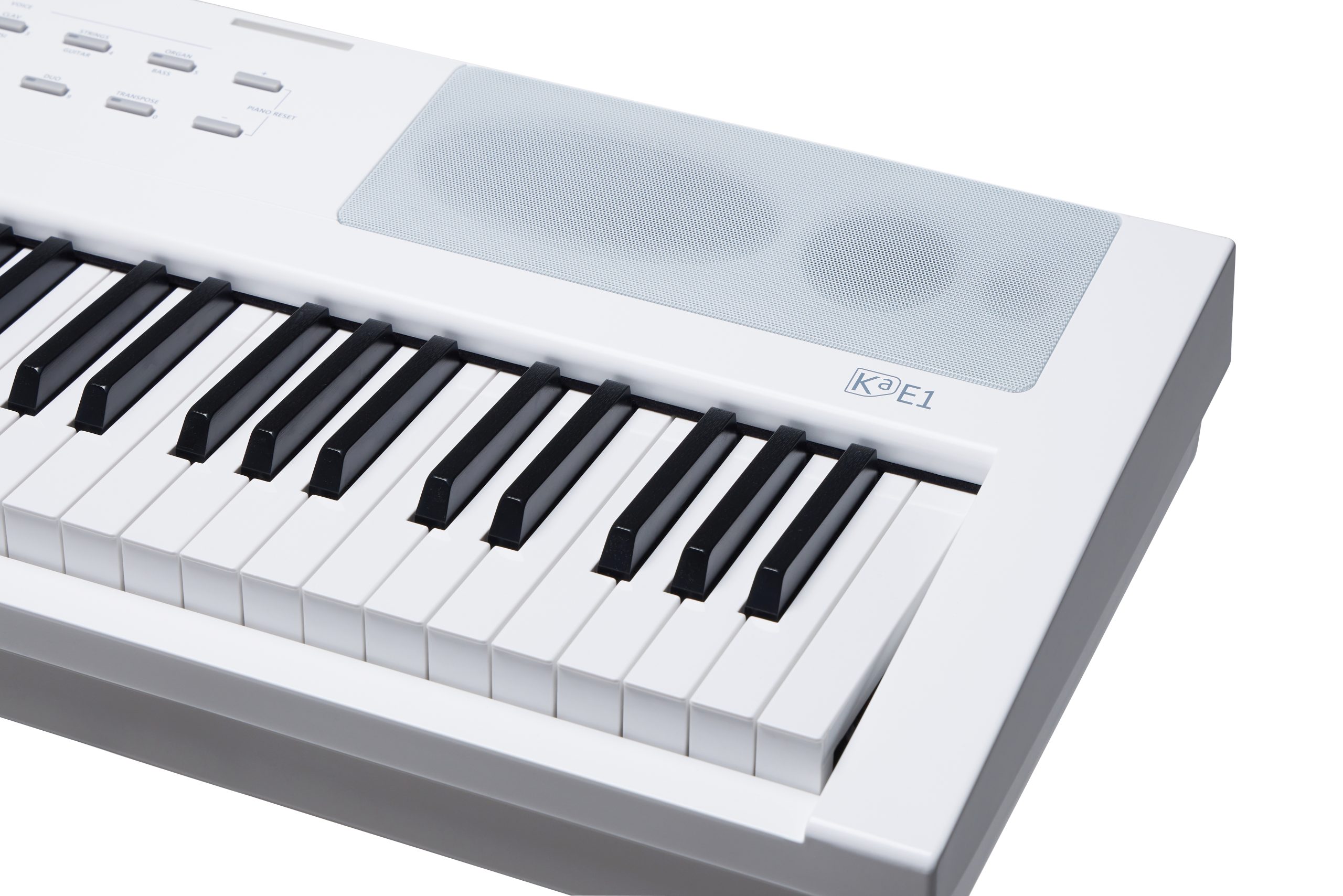

The KaE1 offers an integrated 4-speaker, stereo sound system powered by dual 15W digital amplifiers.

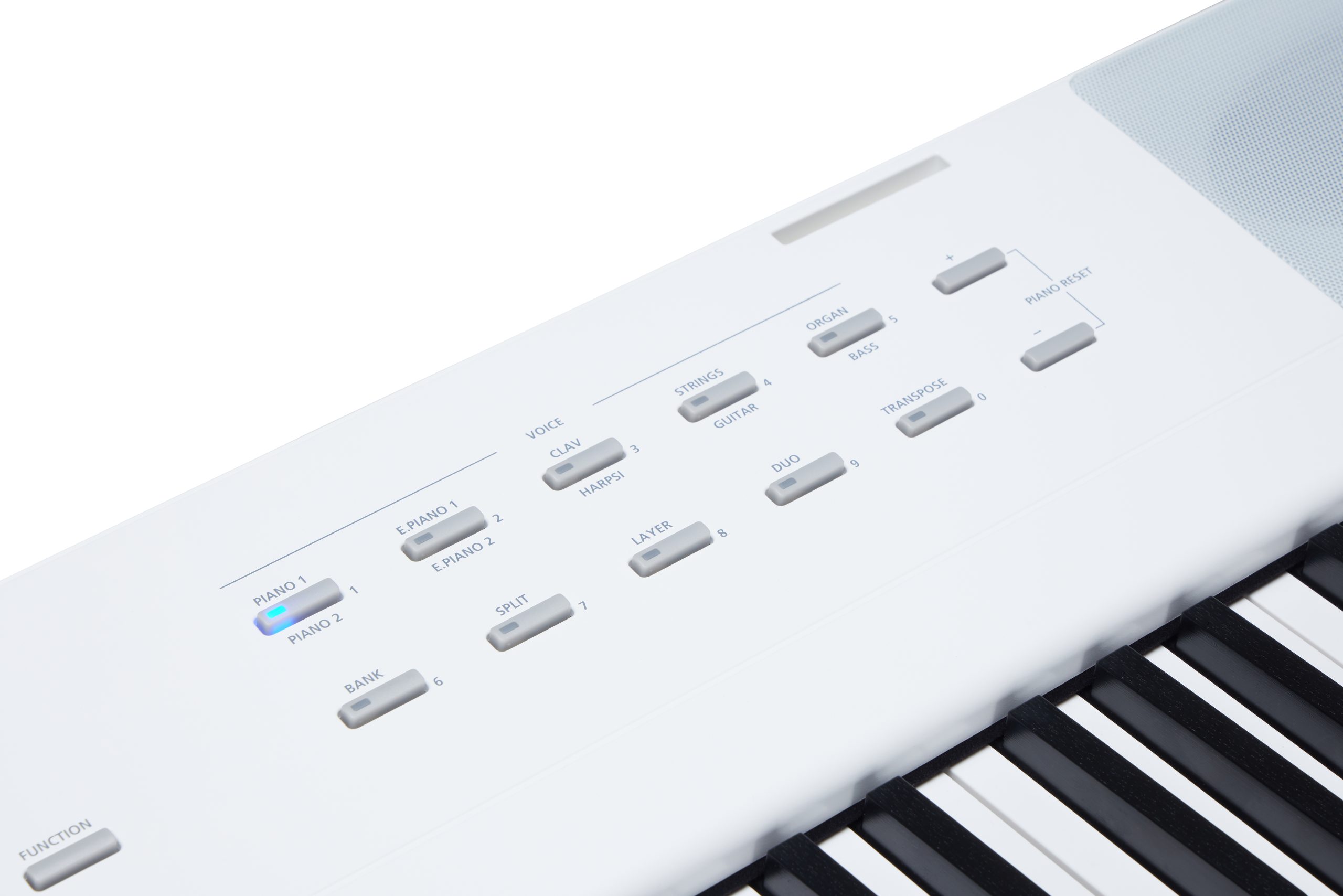

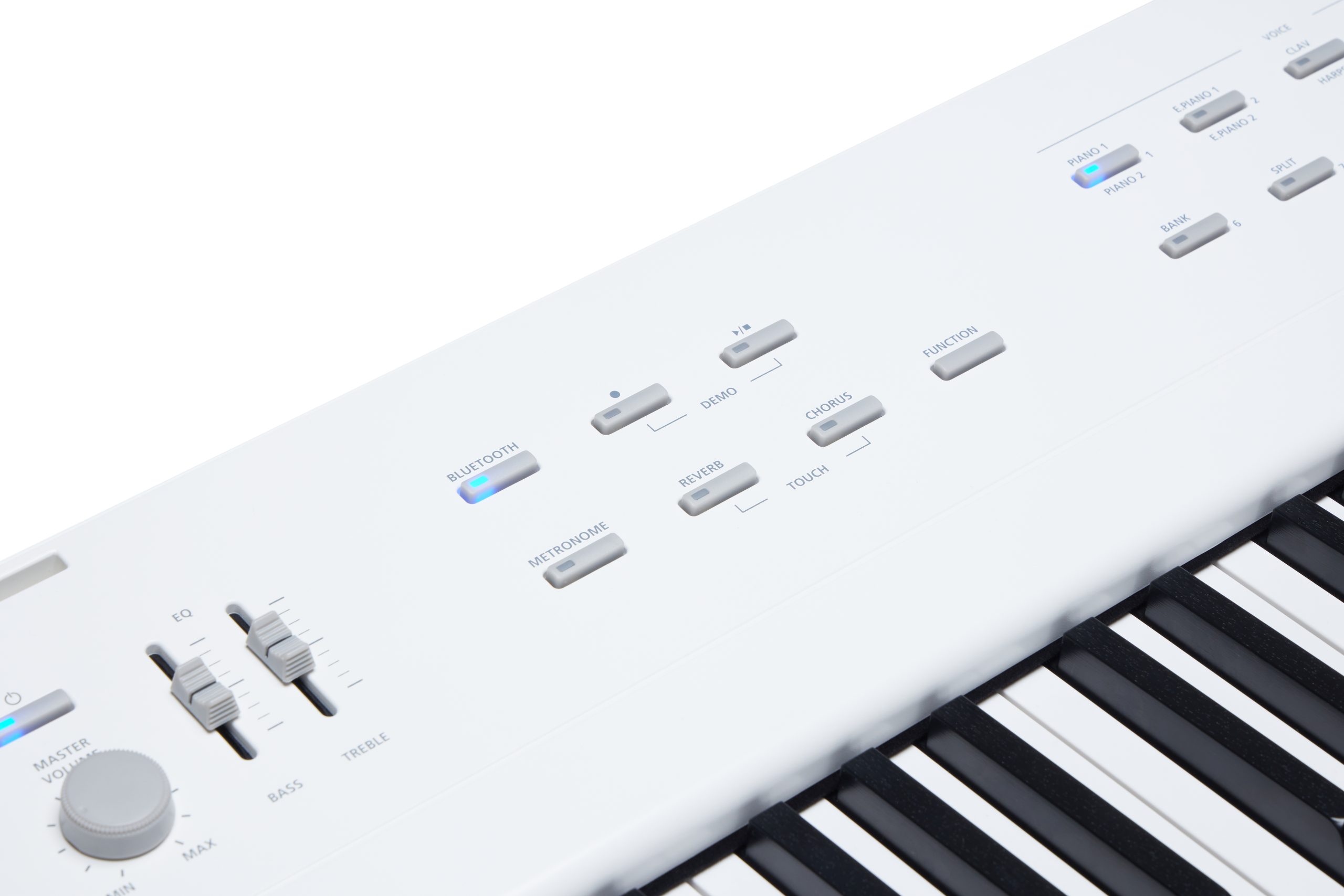

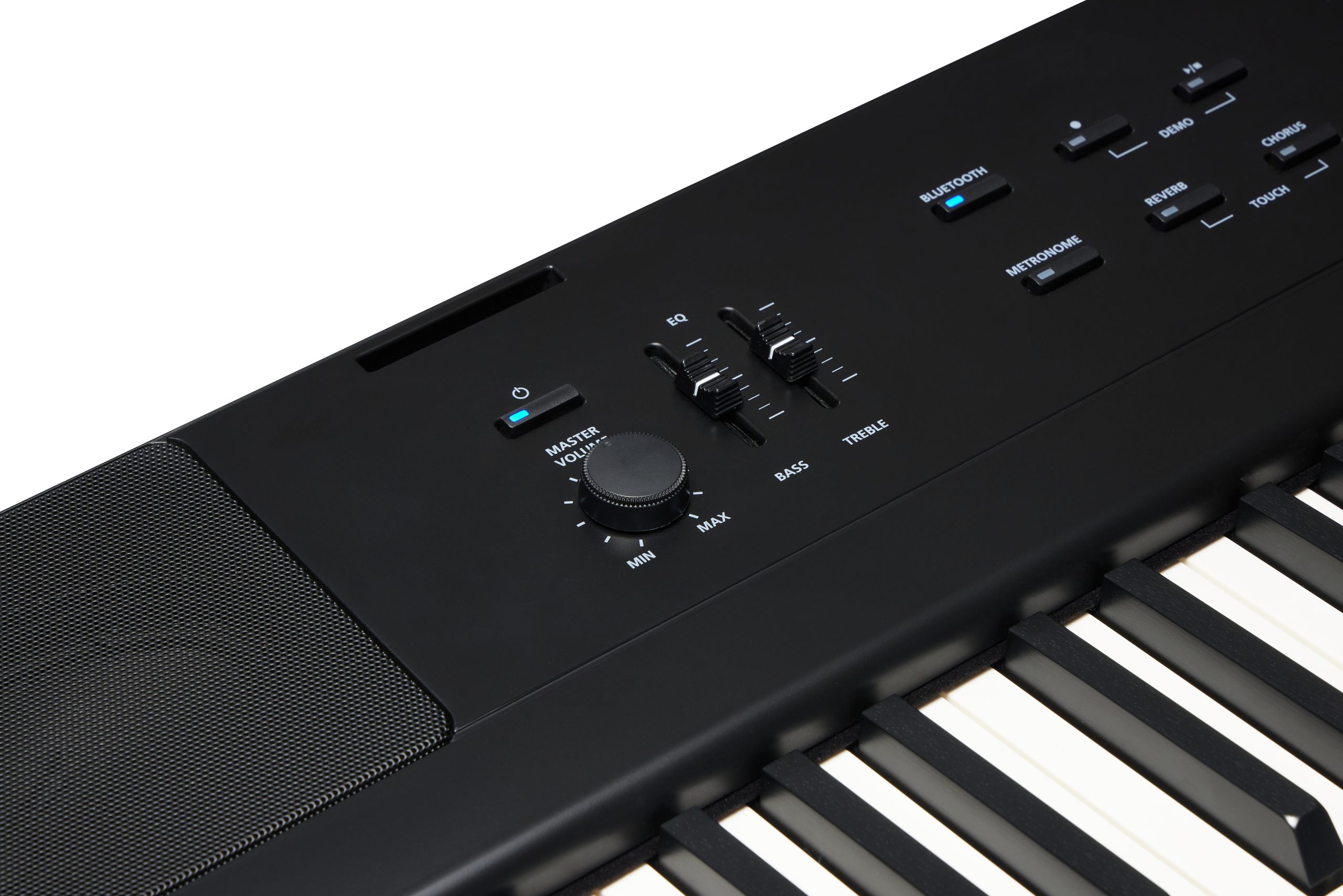

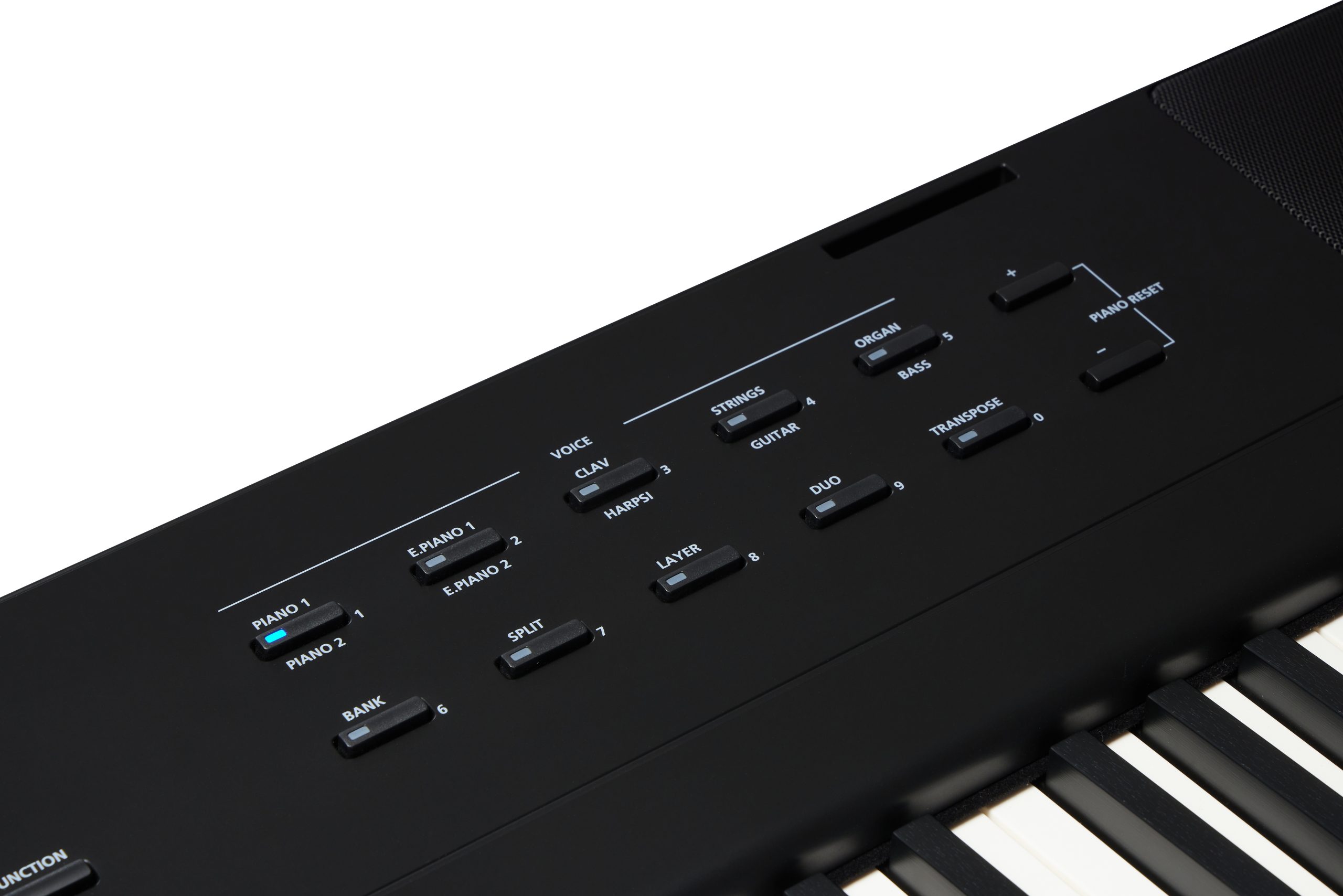

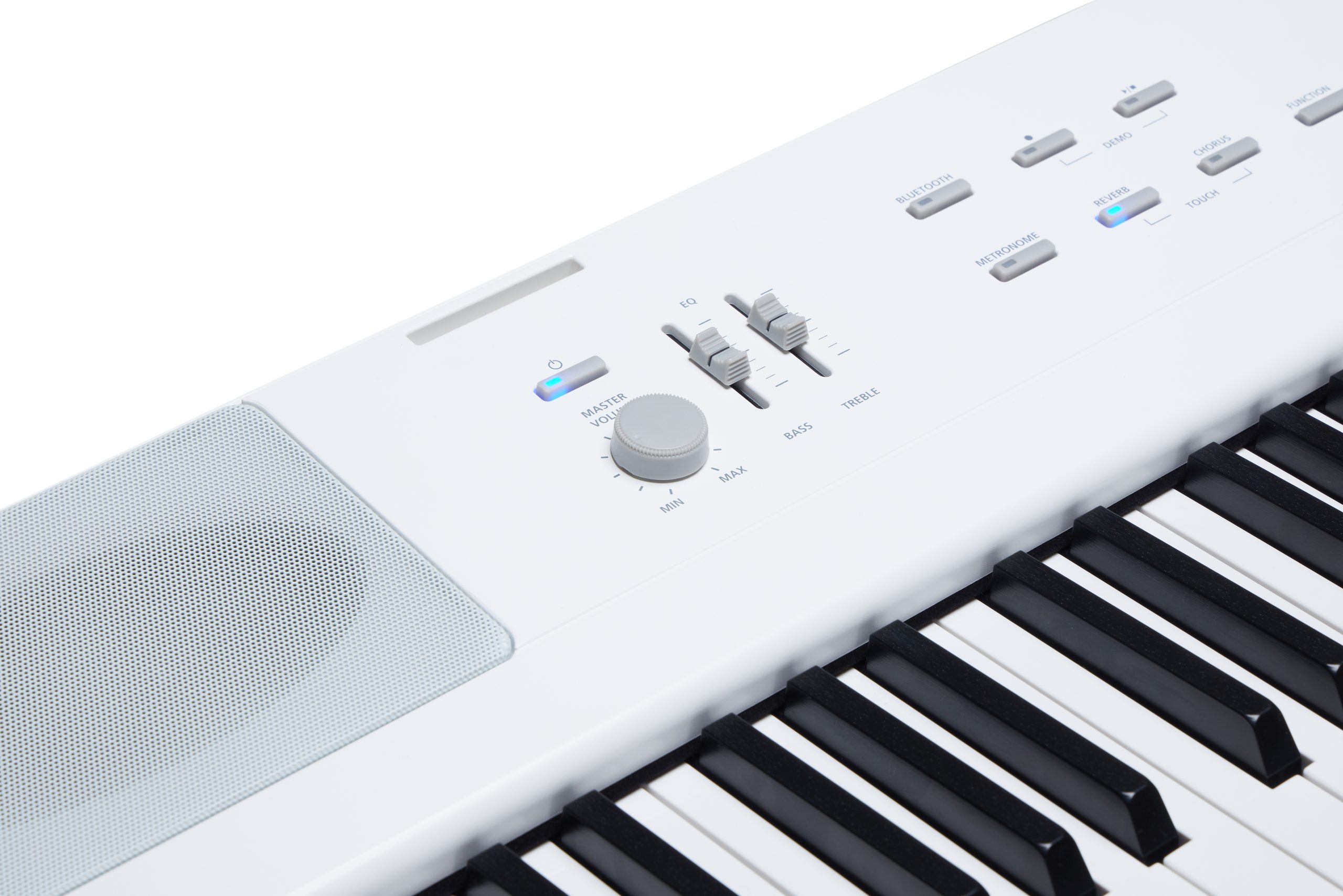

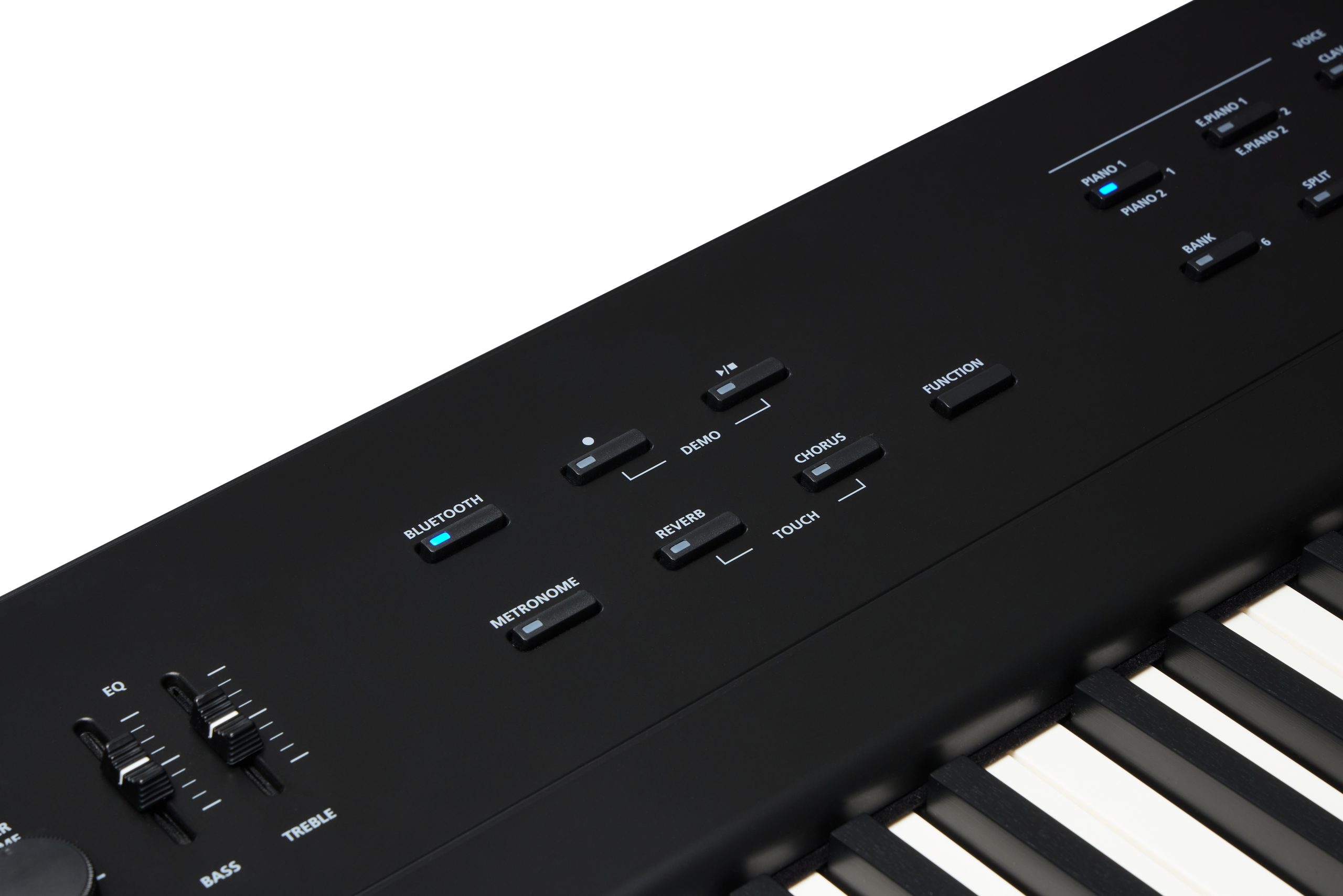

A simplified control panel provides easy access to all performance features.

SPECS

Keyboard:	88-Note, fully weighted, hammer-action with adjustable touch sensitivity (H1 Ivory)
Polyphony:	128 voice
Factory Programs:	20
Performance Modes:	Split / Layer / Duo
Transpose:	Full transposition to any key, +/- one octave
Tune:	+/- 100 cents
Effects:	Reverb and Chorus
Metronome Time Signatures:	14
Recorder/Sequencer:	1-track, 1 song
Sound System:	30 Watt (2 x 15W), 4-speaker, stereo sound system

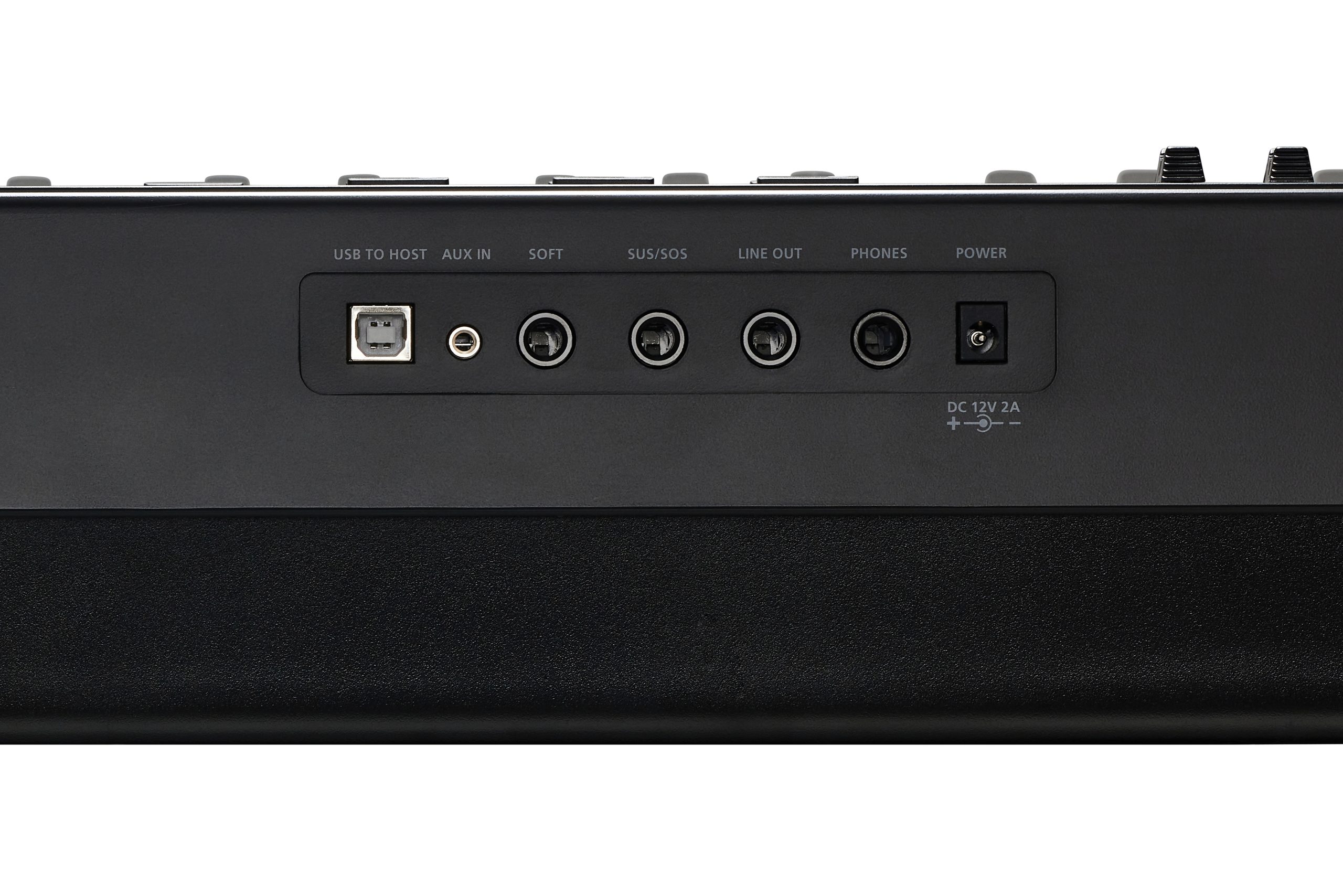

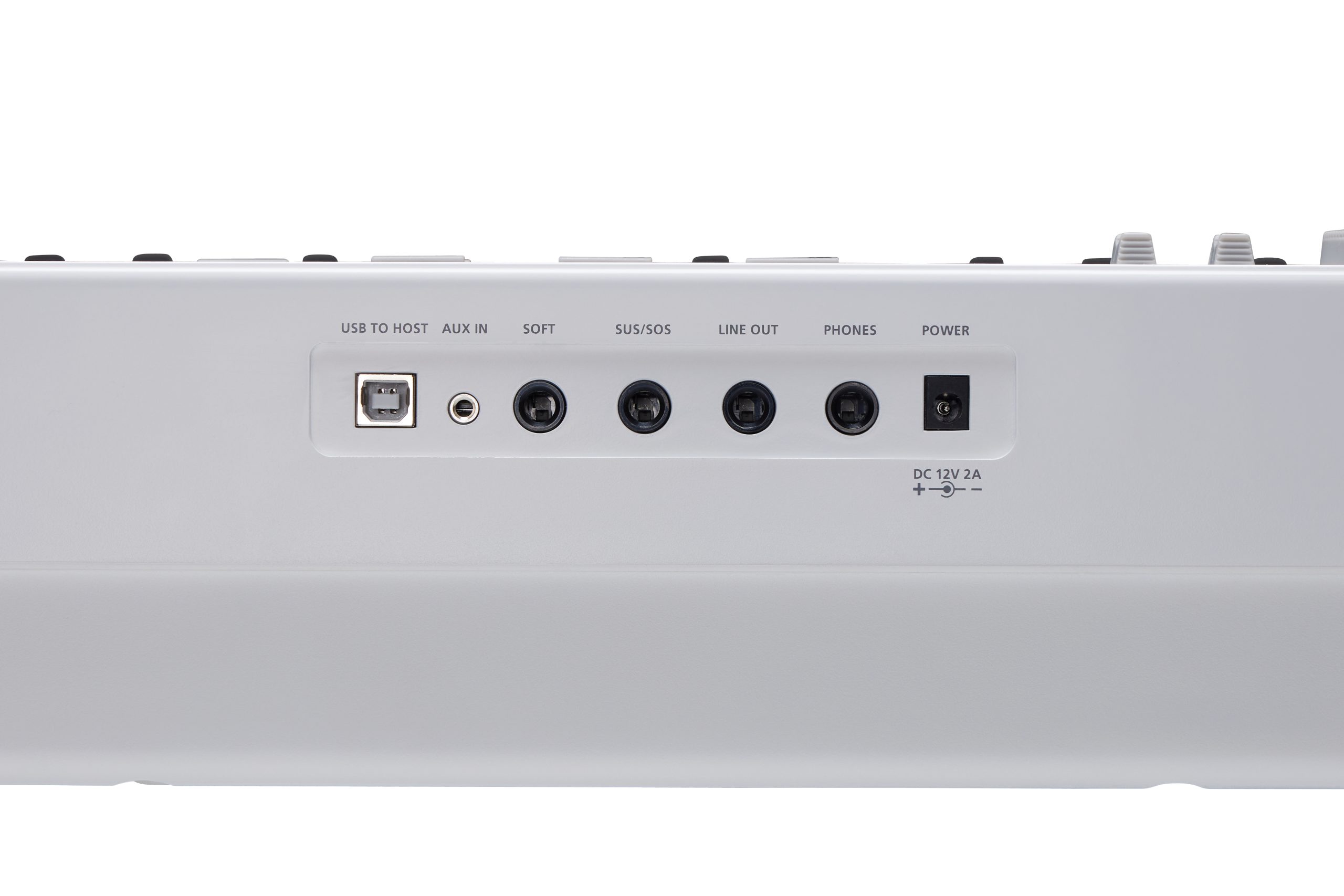

Analog Input:	Stereo 1/8″
Analog Outputs:	(1) 1/4″ stereo
Headphone:	(1) 1/4″ headphone outputs
MIDI:	via USB and Bluetooth
USB MIDI:	Yes
USB Audio:	Yes
Bluetooth Audio:	BT 5.0 Audio Reception
Bluetooth MIDI:	Yes
Pedals:	(1) Sustain/Sostenuto pedal input. (1) Soft pedal input. (one standard switch pedal included)

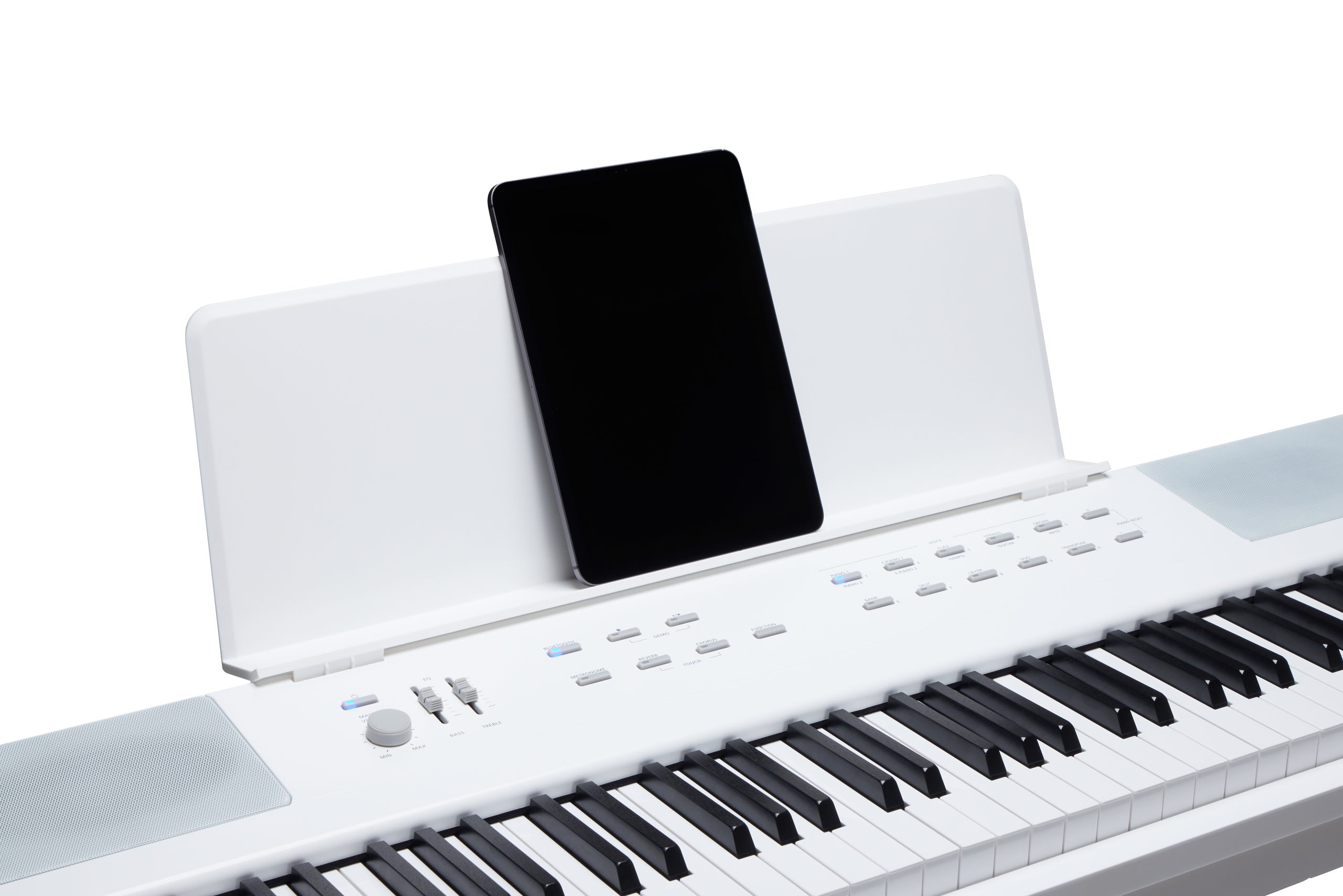

Included Accessories:	Power adaptor, sustain pedal (switch type), Music Rack, USB cable

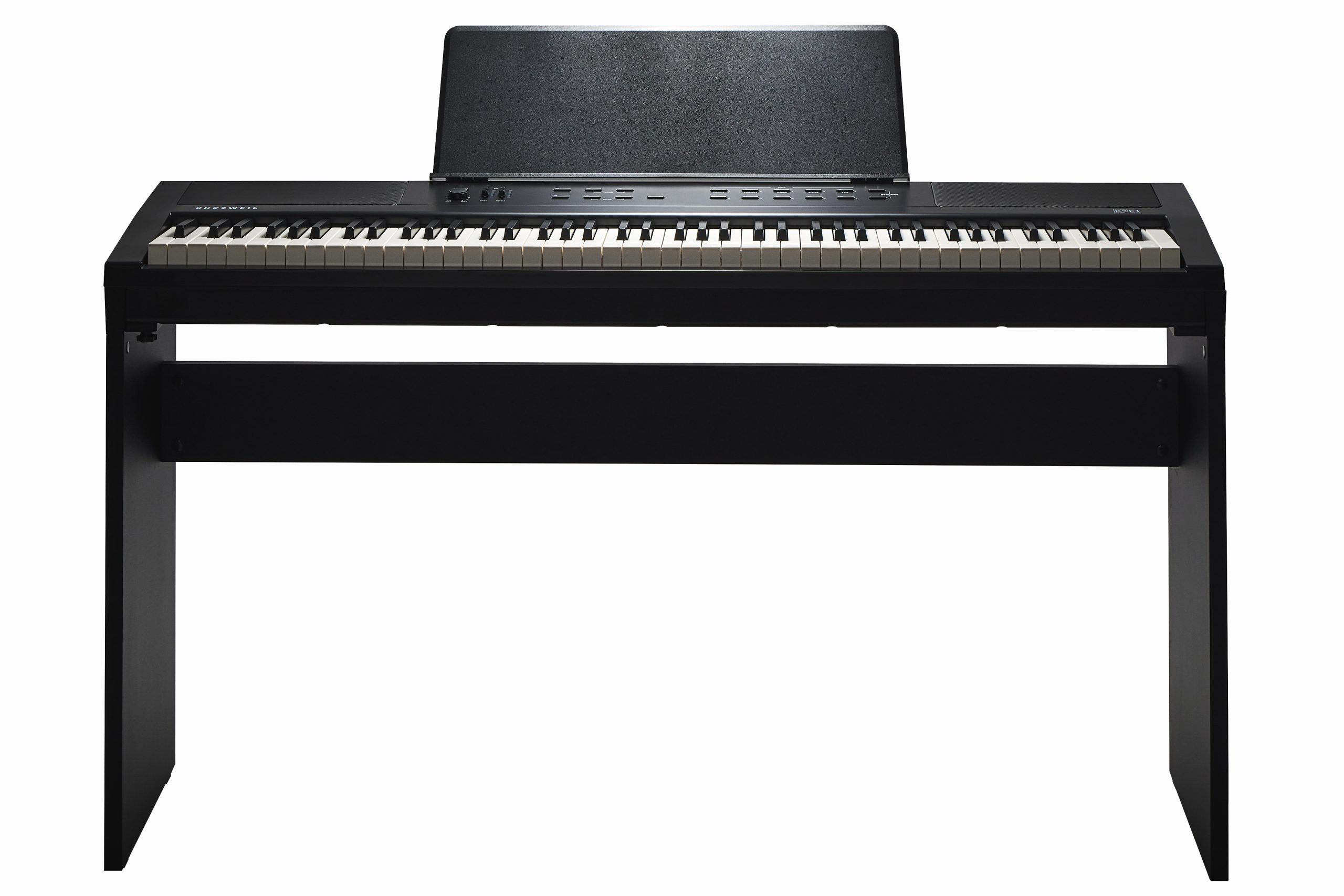

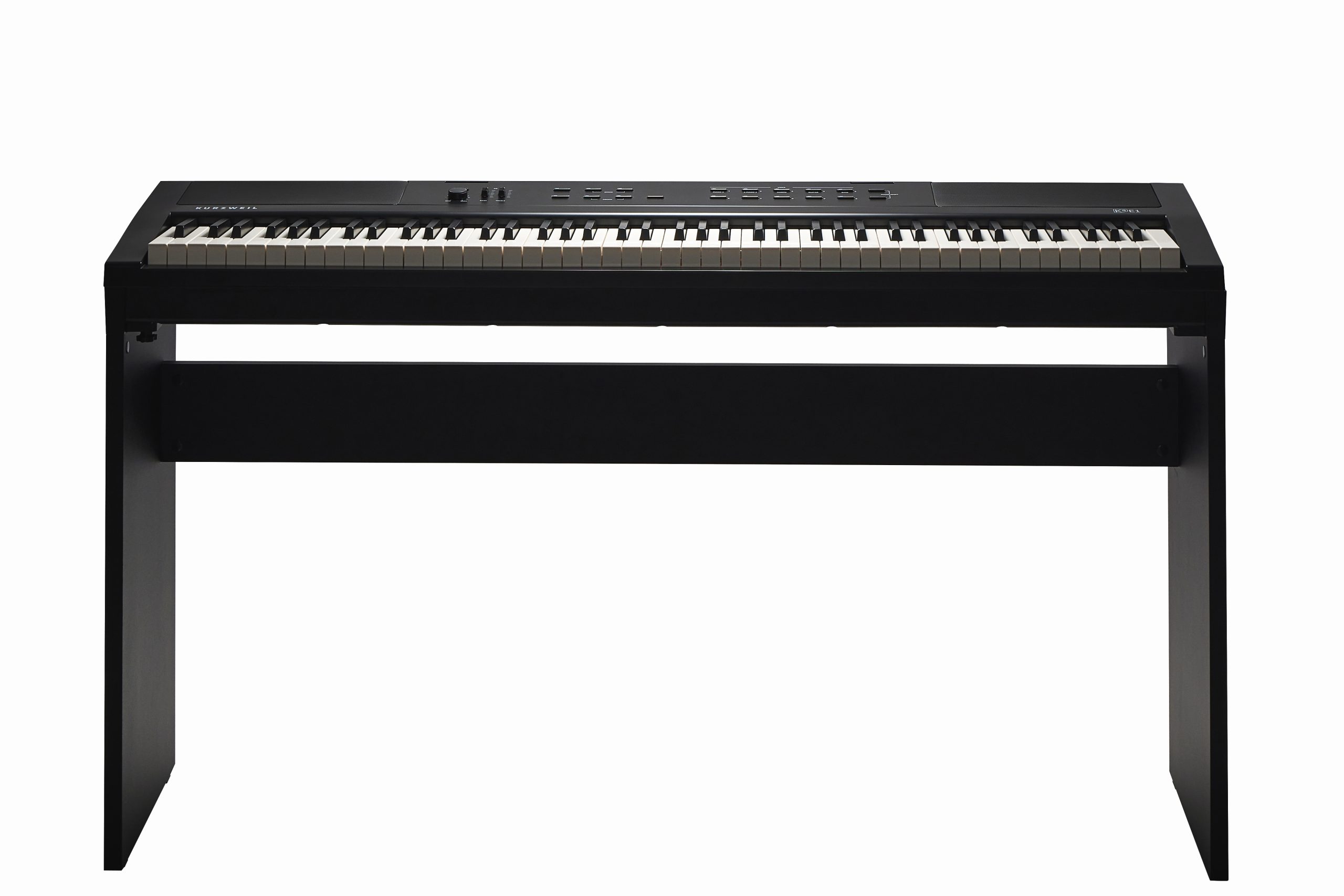

Optional Accessories:	Instrument Stand
Height:	4.4″ (11.2 cm)
Depth:	13.3″ (33.7 cm)
Length:	52″ (132 cm)
Weight:	32.6 lb (14.8 kg)

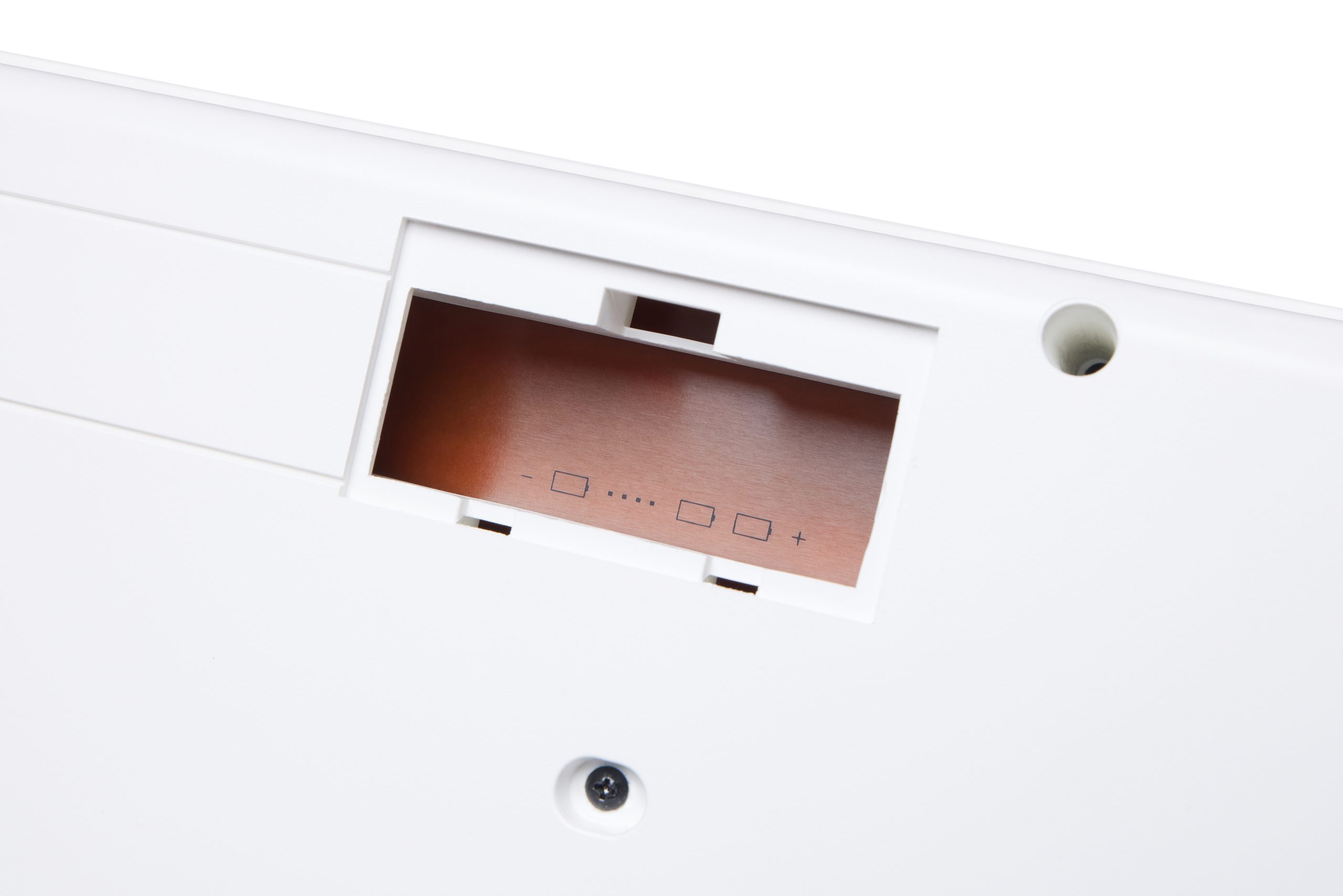

Power:	External 12VDC 2A Power Supply Batteries (8 alkaline D cell)

All specifications subject to change without notice.

		KA50	KA-70	KA-90	KA-120	MPS110	MPS120
Keyboard	Key Action	88 semi-weighted	88 spring	88 hammer	88 hammer	88 graded-hammer	88 graded-hammer
	Wood Keys	x	x	x	x	x	✓
	3-Point Velocity Sensor	x	x	x	x	✓	✓
	Adjustable Sensitivity	✓	✓	✓	✓	✓	✓
Interface/ Controls	Display	n/a	LED	LED	LCD	OLED	OLED
Interface/ Controls	Pitch Bend	n/a	✓	✓	✓	x	x
Sound	Polyphony	32	128	128	128	256	256
	Factory Presets	16	20	20	600	178	178
	User Presets	x	x	x	48	1	1
	Triple Strike Piano	x	✓	✓	✓	x	x
	String Resonance	x	x	x	x	✓	✓
	Pedal Resonance	x	✓	✓	x	✓	✓
	Piano Key-Off Samples	x	x	x	x	✓	✓
	General MIDI	x	x	x	x	✓	✓
Sound Control	Tune	✓	✓	✓	✓	✓	✓
	Tuning Scales	x	7	7	x	x	x
	Transpose	✓	✓	✓	✓	✓	✓
	Splits/Layers	✓	✓	✓	✓	✓	✓
	Effects	✓	✓	✓	✓	✓	✓
	Performance Assistant	x	x	x	✓	x	x
Accompaniment	Styles	x	50	50	230	x	x
Accompaniment	Drum Patterns	x	x	x	x	10	10
Recording/ Playback	Sequencer	✓	✓	✓	✓	✓	✓
	Metronome	✓	✓	✓	✓	✓	✓
	Songs	16	60	60	125	x	x
	Educational Features	x	x	x	✓	x	x
Sound System	Speakers	4	4	4	4	4	4
Sound System	Power	30W	60W	60W	70W	24W	24W
Connections	Audio Outputs	✓	✓	✓	✓	✓	✓
	Audio Inputs	✓	✓	✓	✓	✓	✓
	Mic Input	x	x	x	✓	x	x
	Headphone	1	2	2	2	2	2
	MIDI Ports	x	Out	Out	In/Out	x	x
	USB-MIDI	✓	✓	✓	✓	✓	✓
	USB-Audio	✓	x	x	x	✓	✓
	USB-Device	x	x	x	✓	x	x
	Bluetooth	x	x	x	x	✓	✓
	Switch Pedal Input	✓	✓	✓	✓	✓ (w/ half damper)	✓ (w/ half damper)
Accessories	Music Stand	✓	✓	✓	✓	✓	✓
Accessories	Sustain Pedal	✓	✓	✓	✓	✓	✓
Power	External Adaptor	✓	✓	✓	✓	✓	✓
Power	Battery	✓	x	x	x	x	x
