Legacy Model
Downloads and support materials maintained here as a courtesy to owners.
OVERVIEW |
Hammer Action Keyboard
88 note, fully weighted hammer action keyboard with adjustable touch sensitivity.
128 Inspiring Factory Presets
Enjoy a wide range of acoustic and electronic sound selections, featuring pianos, electric pianos, organs, orchestral, and choir instruments.
26 Accompaniment Patterns
Pre-recorded accompaniment patterns in a variety of styles to play along with.
Modern Cabinet Design
Spinet-style cabinet available in simulated rosewood or white finishes, featuring a 20 Watt, 2-speaker, stereo sound system, built-in music stand and slide-out fallboard.
Simple and Intuitive Controls
Front and center control panel featuring easy access to all system functions, including Sound selection, Styles, Split/Layer, Transpose and Metronome.
Built-In Pedals
Sustain, Sostenuto and Soft Pedals standard.
SPECS |
All specifications subject to change without notice.
| Keyboard: | 88-Note, fully weighted, hammer action with adjustable touch sensitive keys (Medeli 88RPTA) |
| Display: | 7-segment 3-digit LED |
| Voice Type: | Stereo PCM |
| Polyphony: | 68 voice |
| Preset Programs: | 128GM + Drum Kits |
| Rhythms: | 26 (11 Rhythms + 15 RhythmBanks) |
| Play Mode: | Splits, Layers, Dual |
| Demo Songs: | 1 |
| General MIDI: | Yes |
| Transpose: | Yes |
| Tune: | Yes |
| Metronome: | Yes |
| Education Mode: | Bayer, & Czerny 100, 30, 40, Sonatine |
| Audio Power: | 20W x 2, 8 Ohms |
| Speaker: | 6.5″ x 2 |
| Audio Outs: | Stereo left/right RCA line outs (for connecting to external amplification) |
| Audio Ins: | Stereo left/right RCA line ins (for connecting external sound sources) (1) 1/8″ stereo MP3 IN (1) 1/4″ MIC Input |
| Headphones: | (2) 1/4″ stereo headphone outs |
| USB: | (1) port; “Plug and Play” USB functionality allows MIDI over USB for connecting to/from an external computer sequencer; no software driver needed |
| Pedals: | (3) built-in switch-type sustain, sostenuto, soft |
| Finish: | Simulated Rosewood or White |
| Bench: | n/a |
| Dimensions: | 54.33″(W) x 19.57″ (D) x 34.13″ (H) 1380mm (W) x 497mm (D) x 867mm (H) |
| Weight: | 119lb. / 54kg |
| Power: | 90-250V AC free voltage external power supply; 24V 2.5A DC |
IMAGES |
FAQ |
Function Mode
Question:
How can I play individual Sonatine selections built into the KA150?
Answer:
Here are the steps:

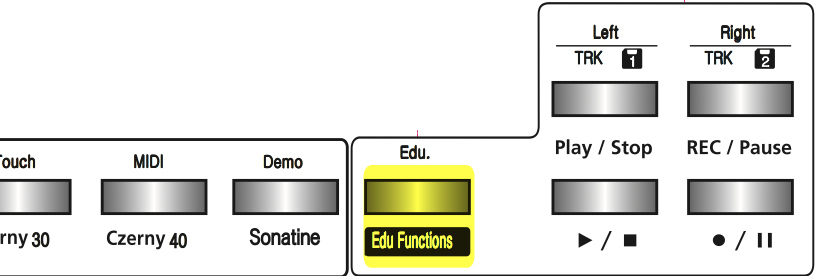

- Press the [Edu/Function] button:
- Press the [Sonatine] button:
- Refer to the list of Sonatines on pg. 25 of the manual. Take note of the ‘Select No’ (number) corresponding to the selection you wish to hear. To play a given selection, punch in the ‘Select No’ (number) for that Sonatine directly using the black piano keys marked 1 through 0 (C#5 – A#6):
Example: To play OP.55 NO.3-2 (Select No. 16 in the manual):
-

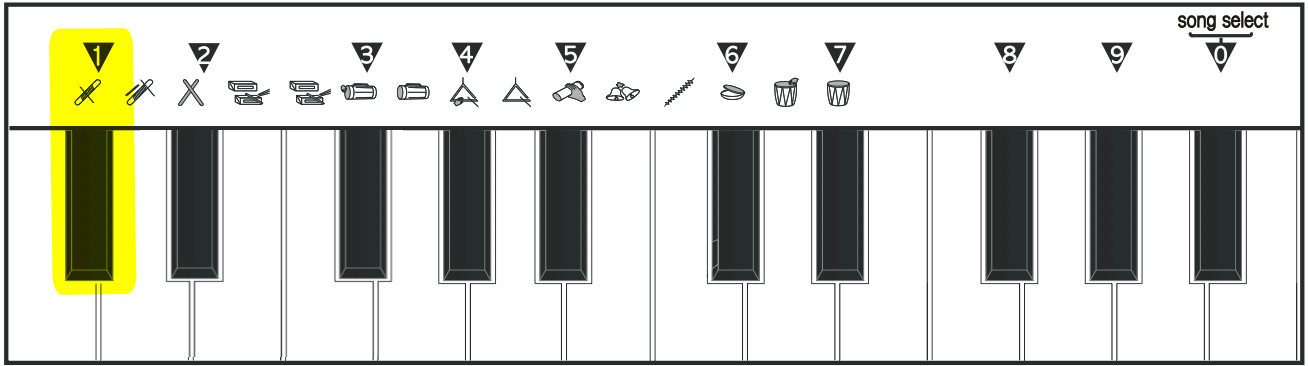

- Press 1 (C#5)
- Press 1 (C#5)
-

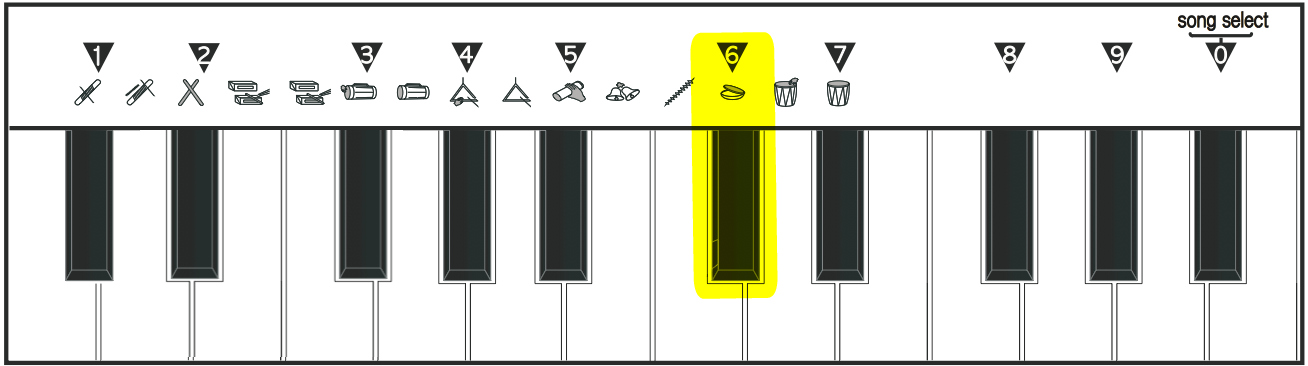

- Press 6 (C#6)
- Press 6 (C#6)

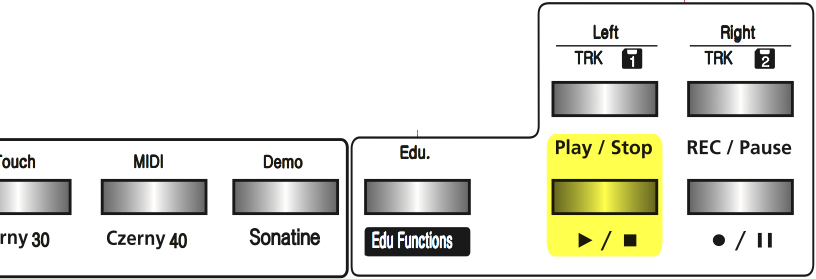

- Press Play/Stop to start playback.
- Press Play/Stop a 2nd time to stop playback.
-
