Legacy Model
Downloads and support materials maintained here as a courtesy to owners.

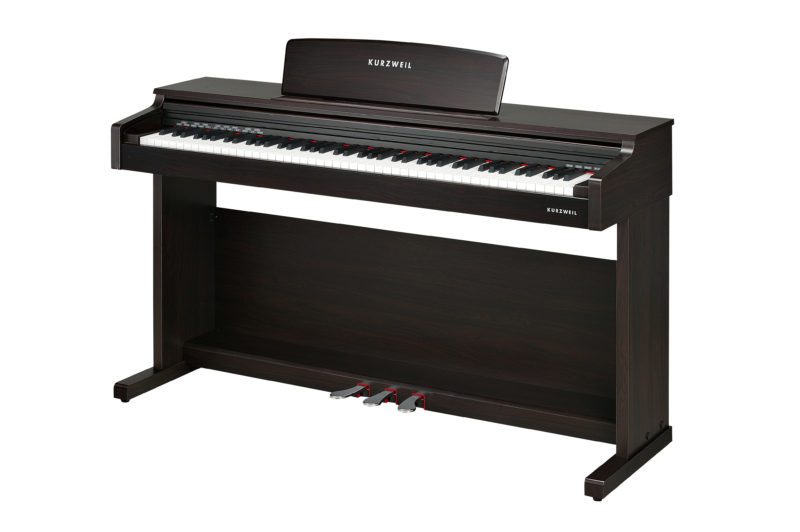

M130 OVERVIEW

Designed for the home.

Hammer Action Keyboard

88 note, fully-weighted, hammer-action keyboard.

20 Inspiring Factory Presets

The M130 features a variety of acoustic/electric pianos, organ, guitar and string instruments.

Reverb and Chorus Effects

Enhance the depth and expression of your performance with separate reverb and chorus effects.

Connect a Music Player and a Mic

Connect an MP3/CD player and a microphone* to the M130 inputs. Play and sing along with your favorite music!

(*sold separately)

50 Demo Songs

The M130 offers a wide array of built-in demos ranging from piano etudes to masterpieces.

Modern Cabinet Design

Spinet-stye cabinet available in a simulated rosewood finish, featuring a 40 Watt, 2-speaker, stereo sound system, built-in music stand and slide-out fallboard.

Built-In Pedals

Sustain, Sostenuto and Soft Pedals standard.

All specifications subject to change without notice.

SPECS

All specifications subject to change without notice.

Keyboard:	88 Note fully weighted, hammer-action
Polyphony:	81 voice
Preset Programs:	20
General MIDI:	No
Splits/Layers:	No
Transpose:	No
Tune:	No
Effects:	Reverb and Chorus
Sound System:	40-watt, 2-speaker stereo sound system
Audio Outs:	Stereo left/right RCA line outs (for connecting to external amplification)
Audio Ins:	Stereo left/right RCA line ins (for connecting external sound sources) (1) 1/4″ MIC Input
Headphones:	(2) 1/4″ stereo headphone outs
MIDI I/O:	Over USB
USB:	(1) port; “Plug and Play” USB functionality allows MIDI over USB for connecting to/from an external computer sequencer; no software driver needed
Pedals:	(3) built-in switch-type: sustain, sostenuto, soft
Finishes:	Simulated Rosewood
Bench:	Matching bench sold separately
Dimensions:	33.7″(H) x 56″ (W) x 17.3″ (D) 85.5 cm (H) x 142 cm (W) x 44 cm (D)
Weight:	134.5 lb / 61 Kg
Power:	DC 15V 4A external power supply
