Legacy Model
Downloads and support materials maintained here as a courtesy to owners.
KCL OVERVIEW |
The Kurzweil KCL piano lab controller connects up to 16 Kurzweil pianos (expandable to 32 with 2 KCL units). Allows groups, and 2-way communication. Teacher station and multimedia connections. Each piano station requires a KCB connection box, connector cable and headphone/microphone headset (each sold separately).
SPECS |
| Monitor Out: | (2) RCA unbalanced mono |
| Record Out: | (2) RCA unbalanced mono |
| Auxiliary Out: | (2) RCA unbalanced mono |
| Tape Input: | (2) RCA unbalanced mono |
| Student Inputs: | (16) RJ-45 (8 conductor telephone type) |
| From Master: | RJ-45 (8 conductor telephone type) |
| To Secondary: | RJ-45 (8 conductor telephone type) |
| To Master KCL/Computer: | 9-pin D-sub |
| To Secondary KCL: | 9-pin D-sub |
| Teacher’s Instrument: | 1/4″ phone |
| Teacher’s Microphone: | mini phone |
| Teacher’s Headphone: | mini phone |
| Power Requirements: | 9 volts (AC) 1 Amp (use supplied AC adaptor only) |
| Size: | 10.25″D x 15.5″W x 3″H (26.04cm x 39.37cm x 7.62cm) |
| Weight: | 3.5 lbs. (1.59 Kg) |
All specifications subject to change without notice.

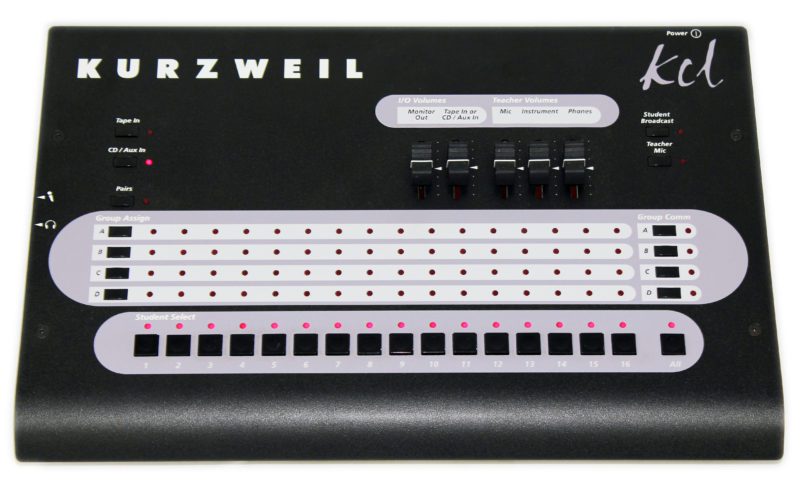

IMAGES |
