What are the various view modes available on the PC3LE and how do I access them?
The PC3LE offers three different display mode options, effecting Setup, Program and QAccess Modes:
- 'Controllers' (default behavior):
Set to ‘Controllers’ the info box displays controller activity in Program and Setup Play Modes.
For live situations under low light or for floor demos, "Large" shows the currently selected program or setup using a large size font.

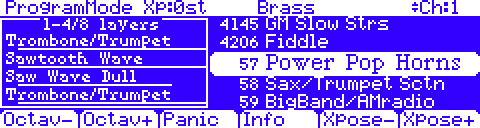

The info box will display an overview of the keymap names and ranges for each layer in the current Program (while in Program Mode) or an overview of the Program names and ranges for each zone in the current Setup (while in Setup Mode). The line beneath the name of the keymap/program indicates the keyboard range of that layer/zone.
Selecting the View Mode
- From any mode, simultaneously press the two center soft-buttons (SOFT3+SOFT4) to first access Utilities mode:
- Press [more] to the Left -OR- Right to access additional parameter choices.
- Press the [Disply] soft button to cycle through the 3 available modes - 'Large', 'Keymap/Zones' and 'Controllers. Each button press advances to the next view mode:
